TOOL & DIE
Our background is in tool & die and this has enabled us to specialize in progressive dies, hand transfer dies, specialty stations and hard milling. We have 3 and 5-axis technology as well as manual machines giving us the full range of machining ability to suit any tool & die need. We are also able to assemble dies where required. Examples of our work are pictured below. Simply click on the thumbnail for a larger image. To return to this page, use your web browsers back button.

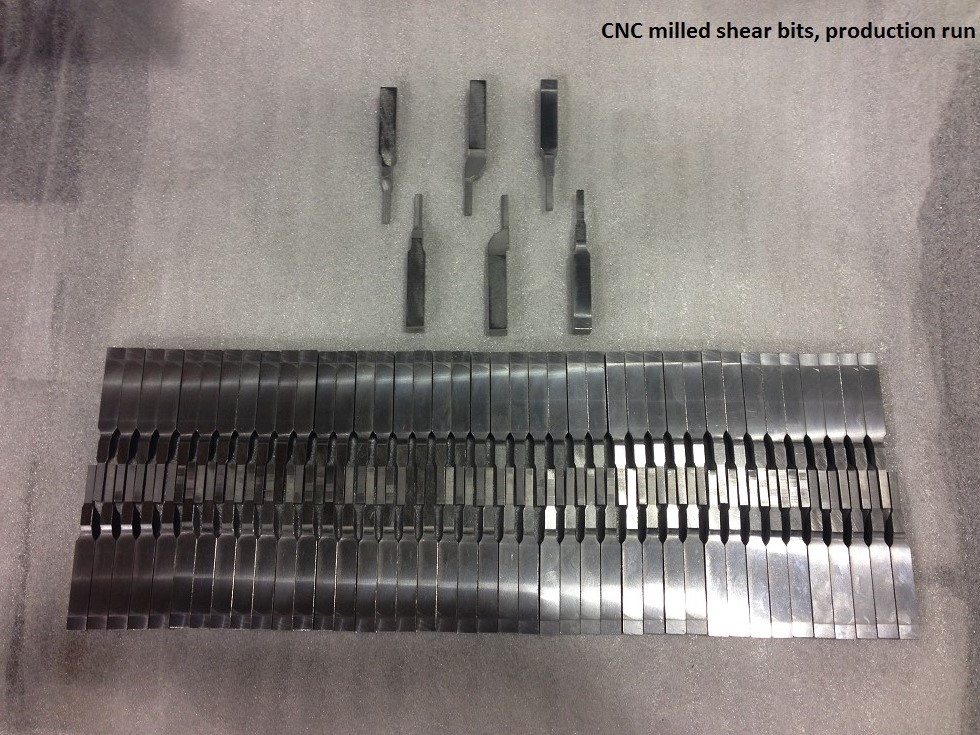

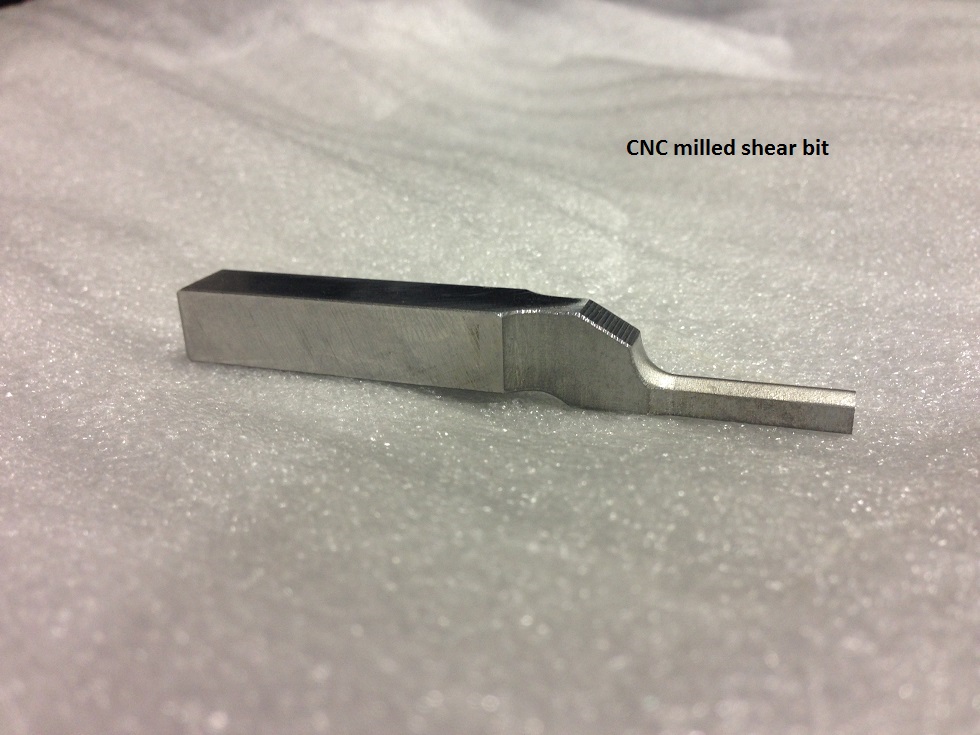

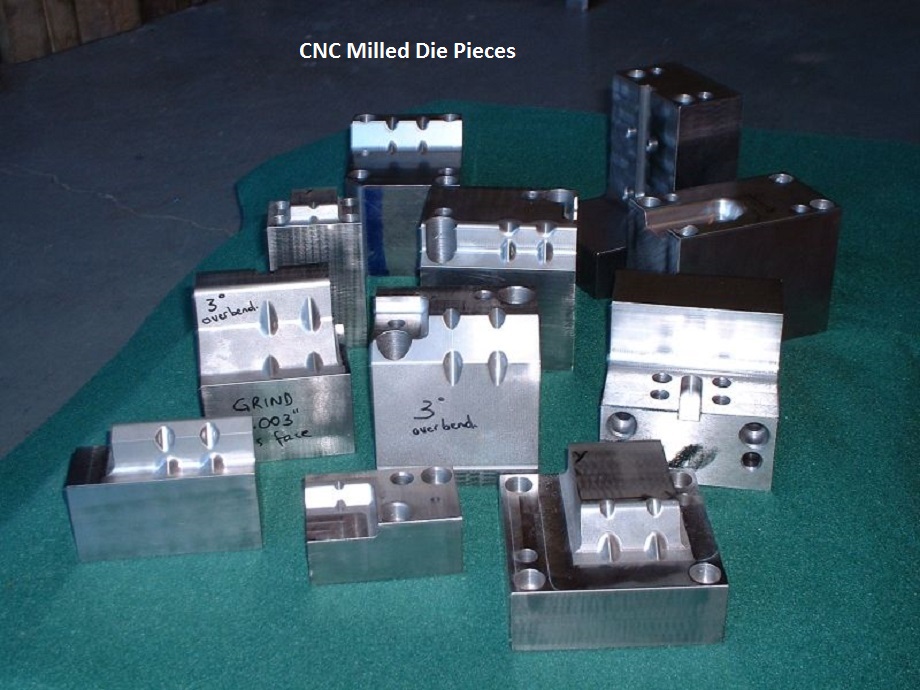

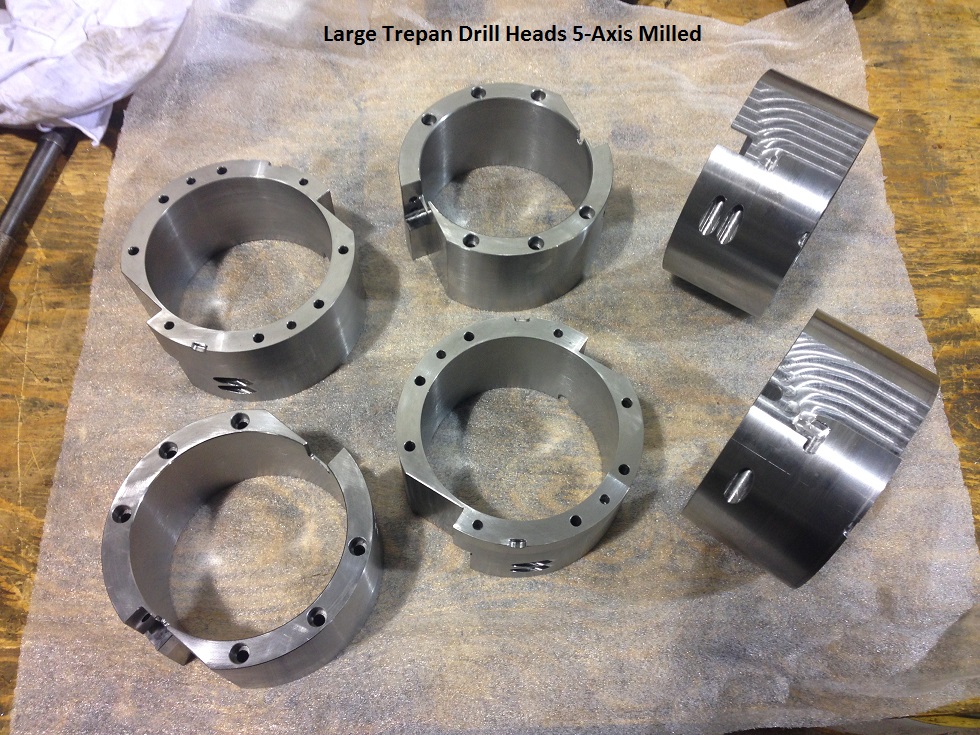

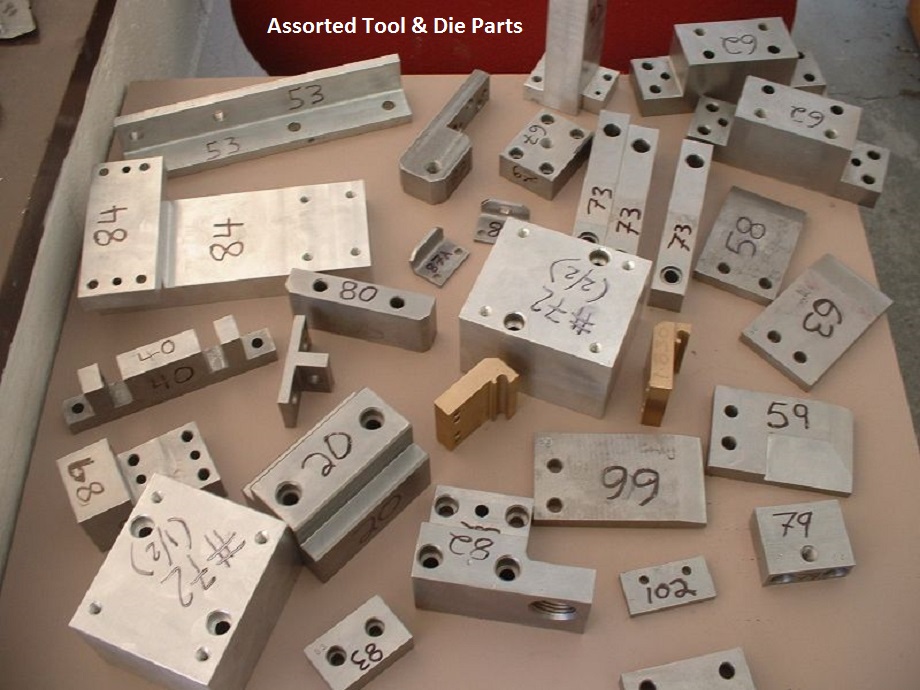

CNC milled shear bit. CNC milled shear bits, production run. Large Trepan Drill Heads 5-Axis Milled. Assorted Tool & Die parts. CNC Milled Die Pieces.

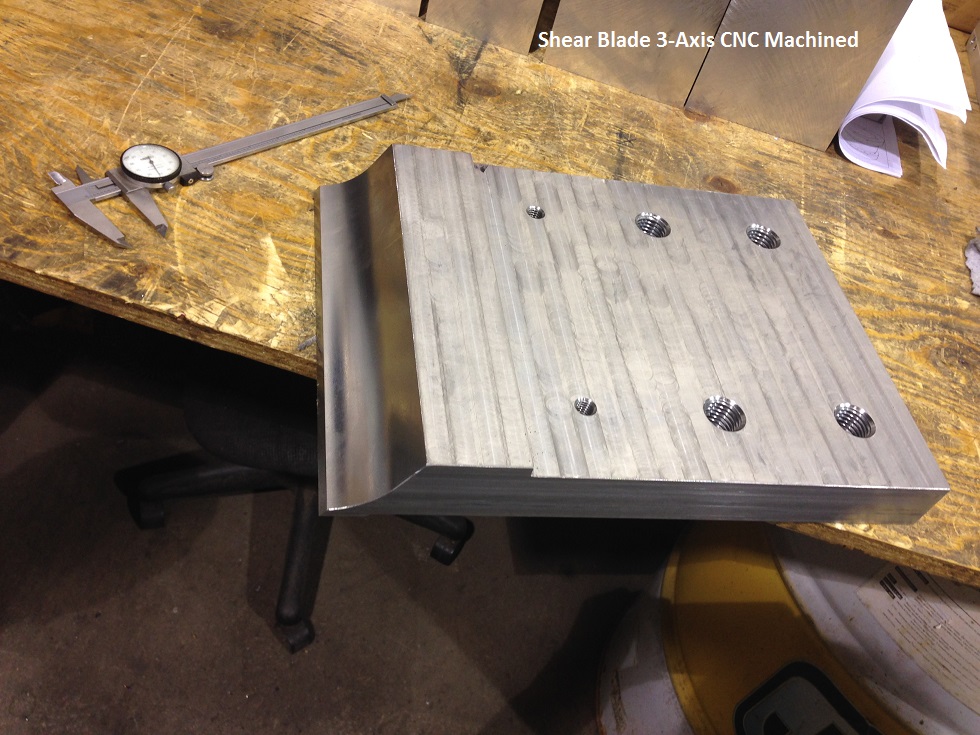

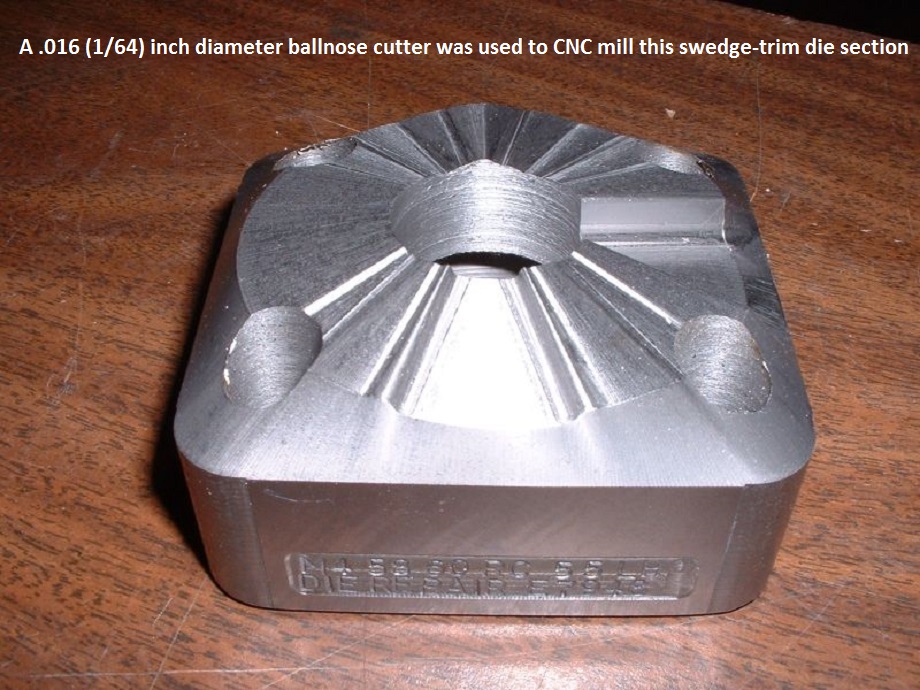

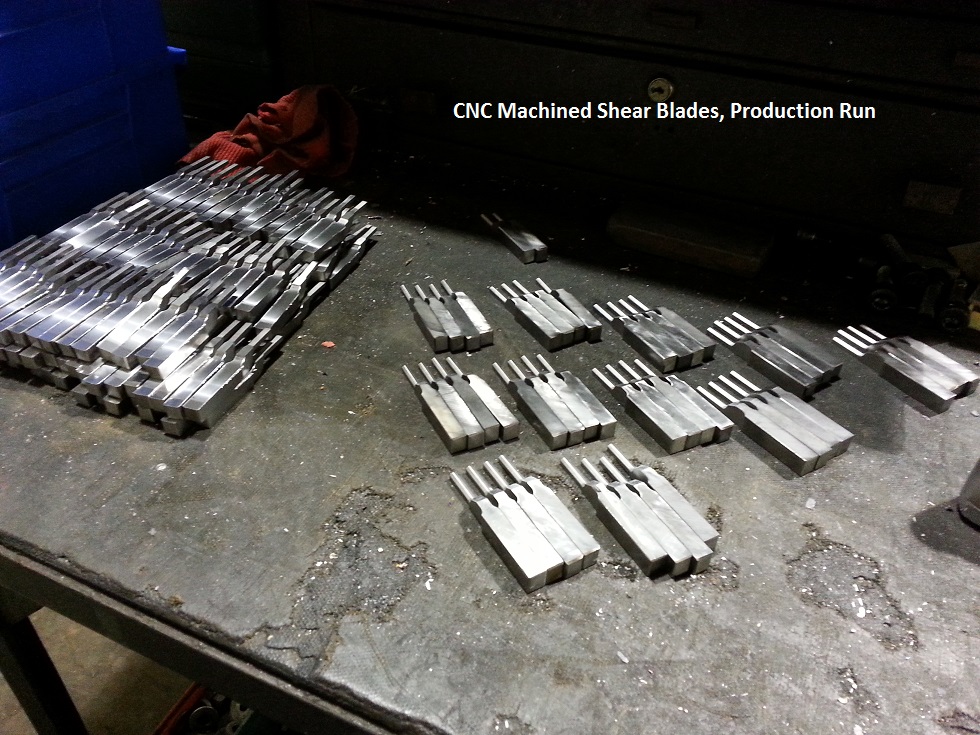

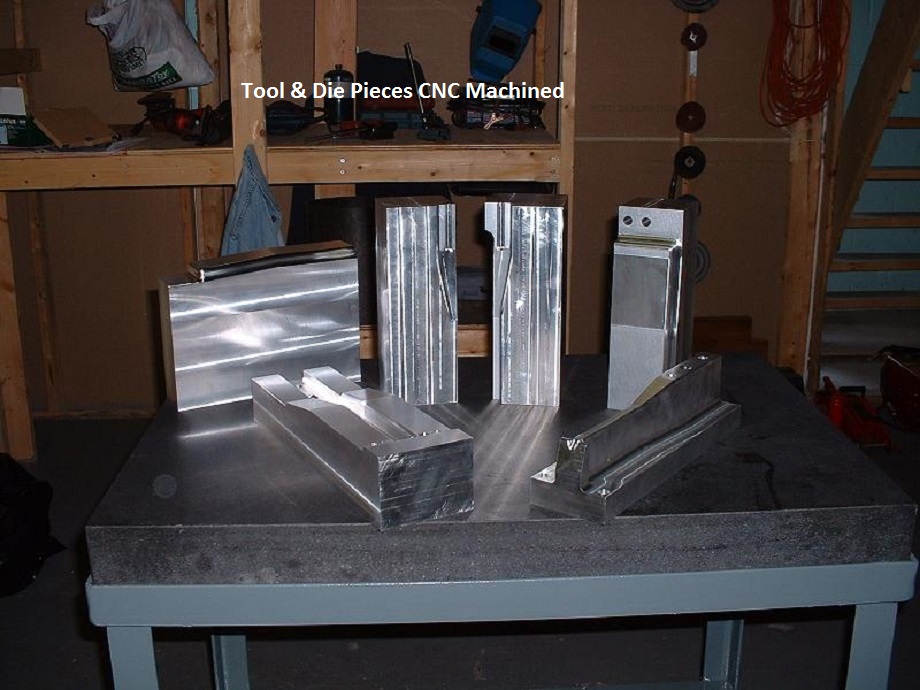

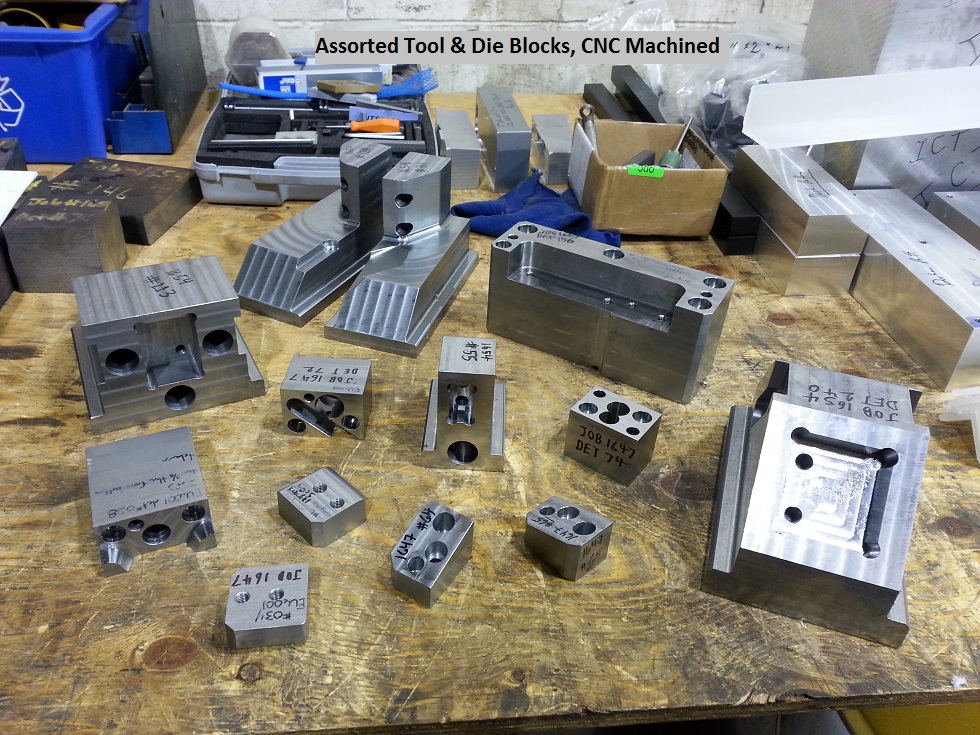

Tool & Die Pieces CNC Machined. A .016 (1/64) inch diameter ballnose cutter was used to CNC mill this swedge-trim die section. CNC Machined Shear Bits, Production Run. Assorted Tool & Die Blocks, CNC Machined. Shear Blade 3-Axis CNC Machined.

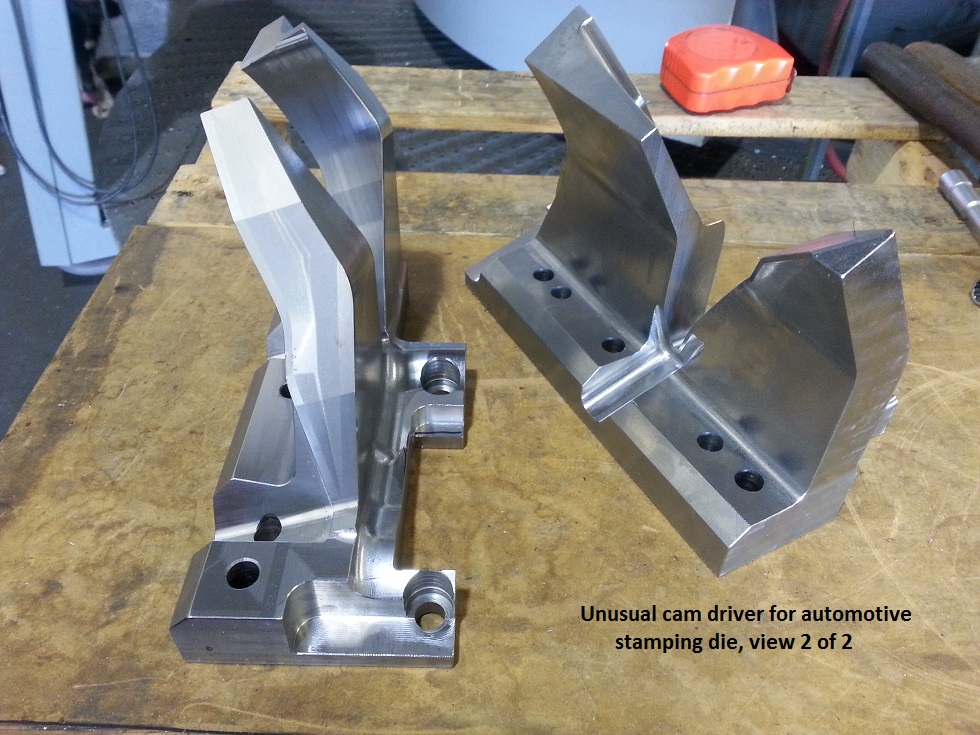

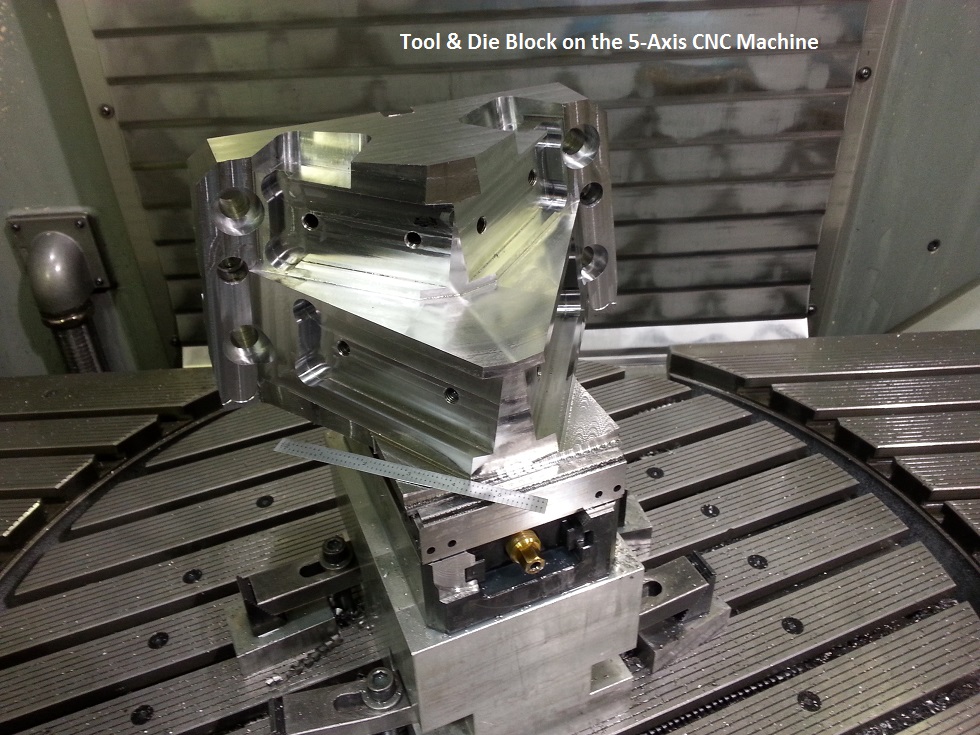

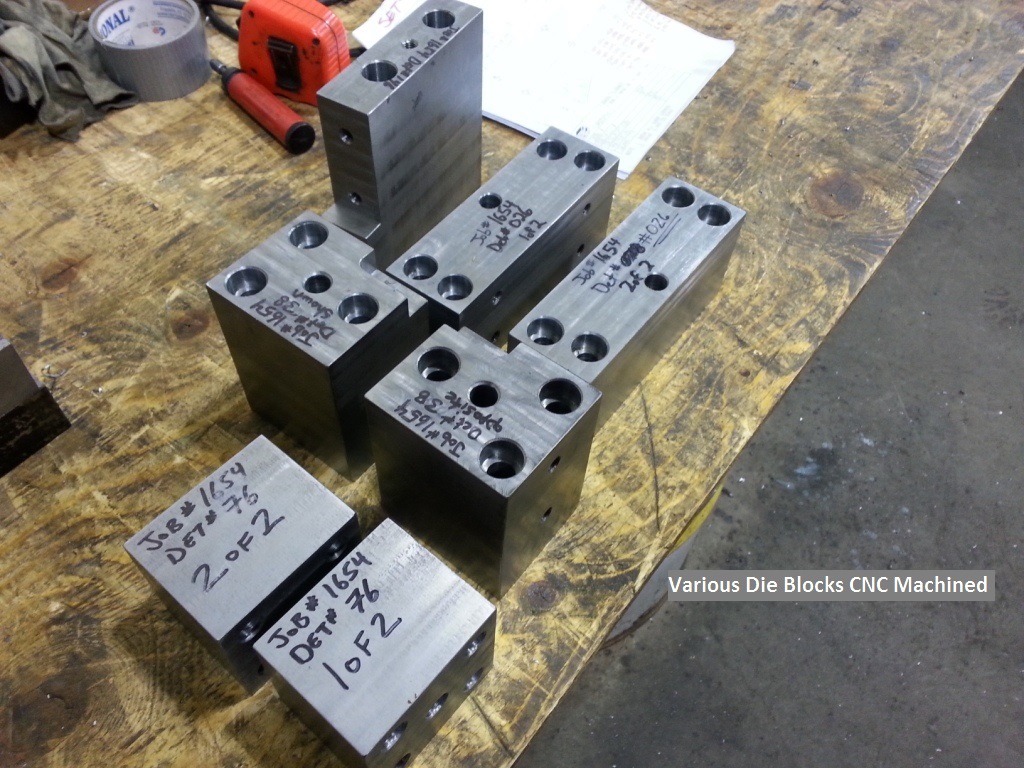

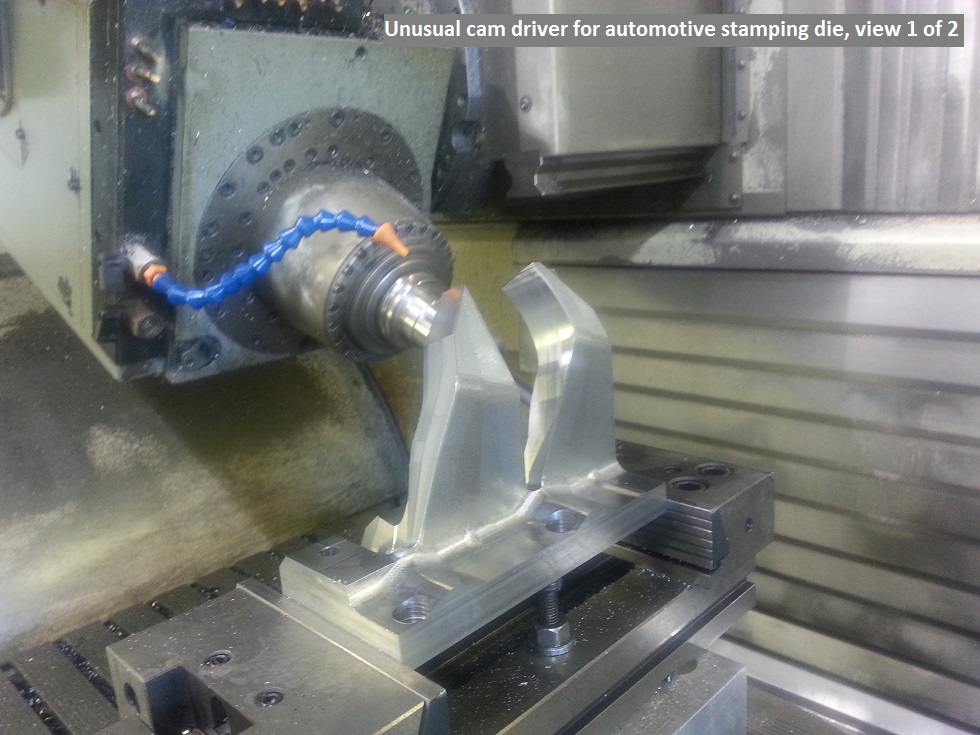

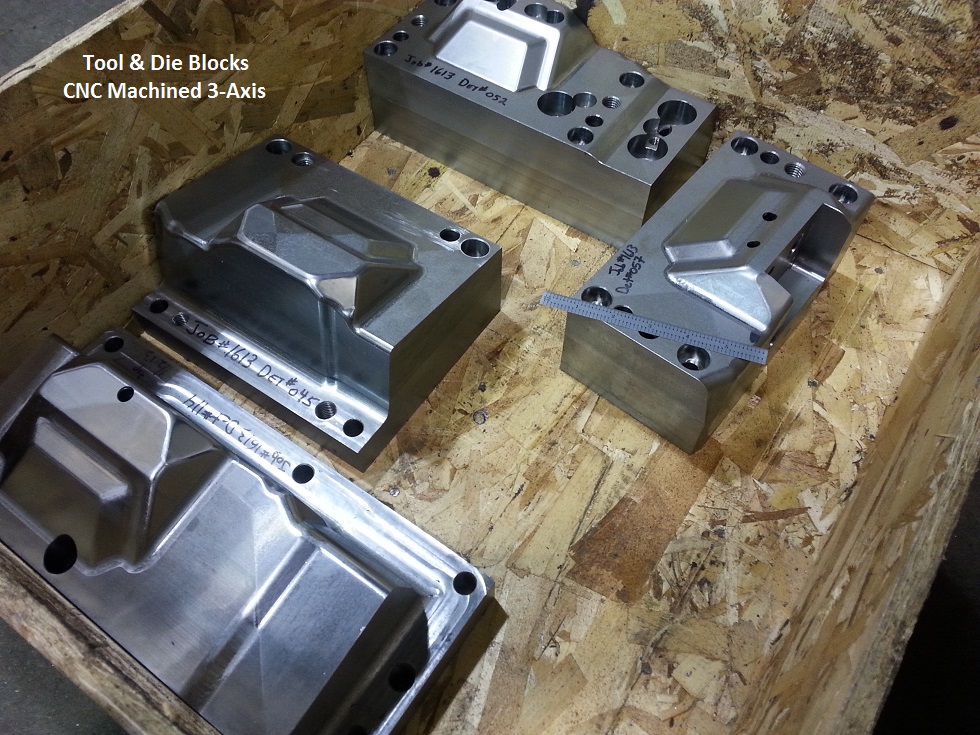

Various Tool & Die Blocks. Tool & Die Blocks CNC Machined 3-Axis Tool & Die Block on the 5-Axis CNC Machine Unusual cam driver for automotive stamping die, view 1 of 2 Unusual cam driver for automotive stamping die, view 2 of 2

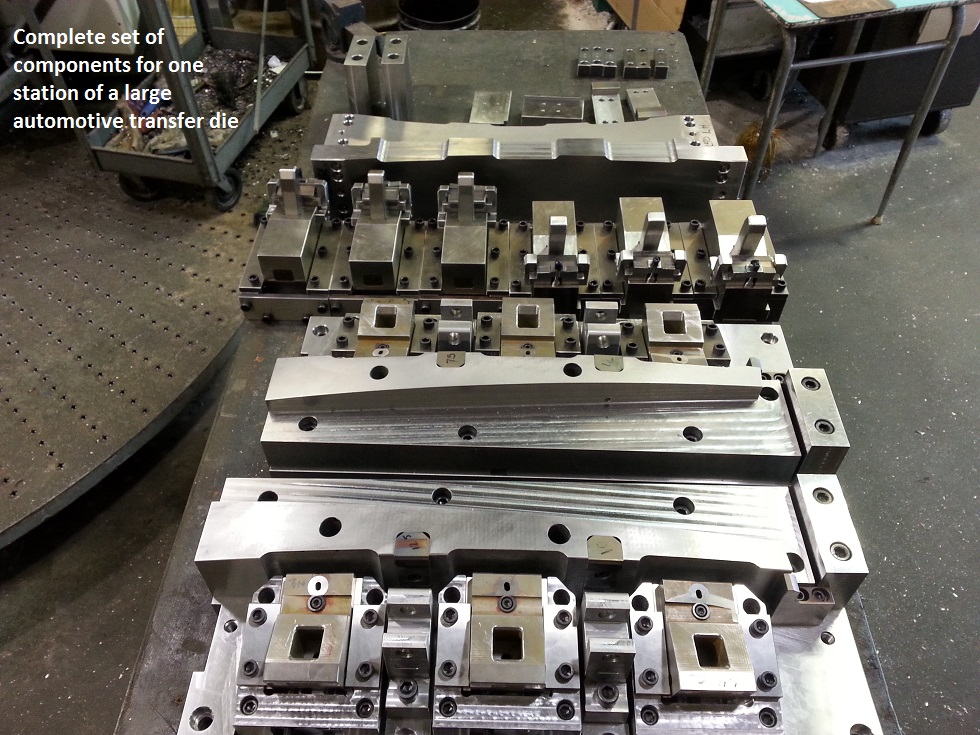

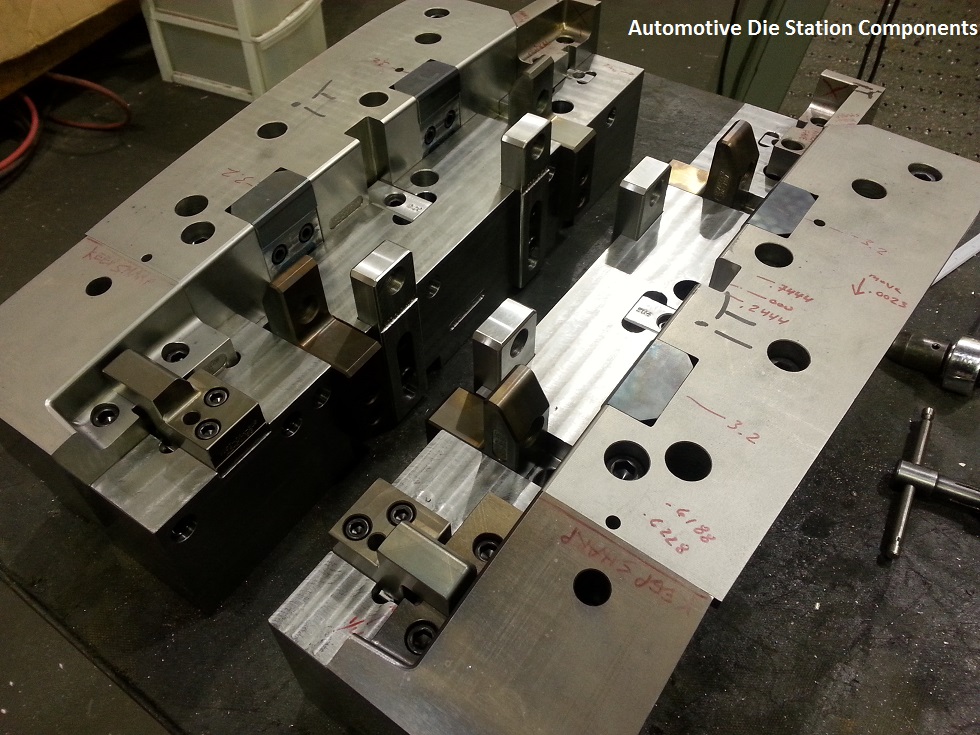

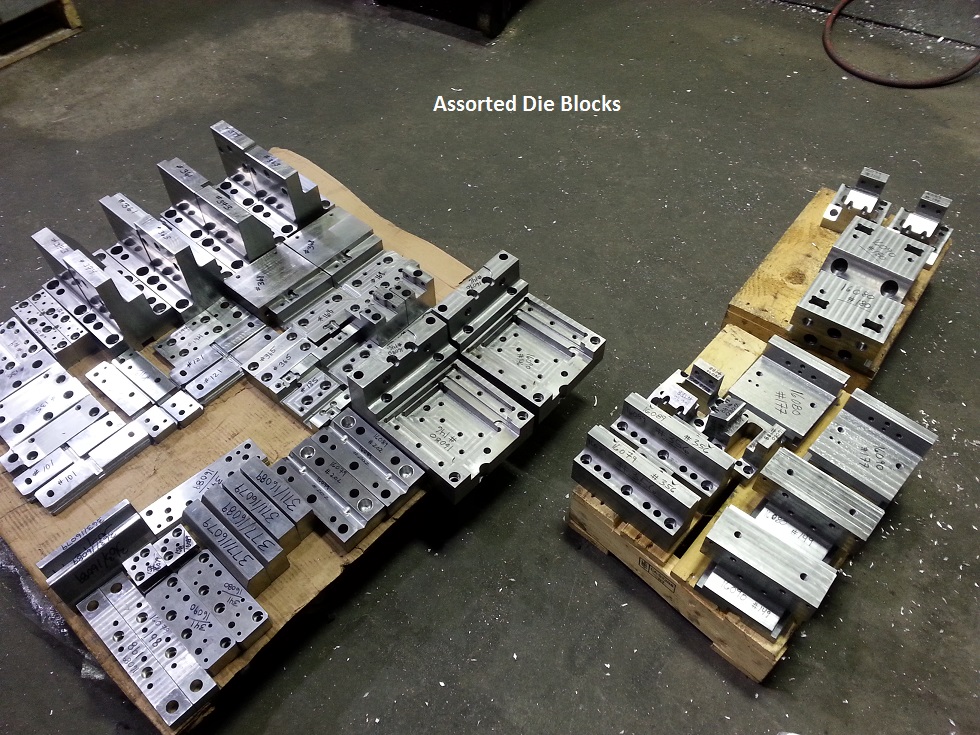

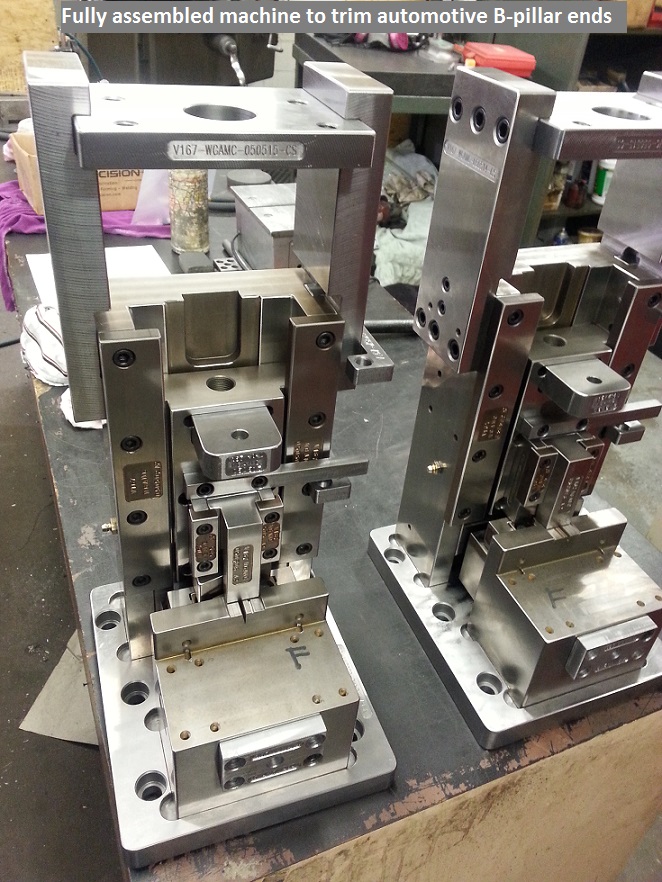

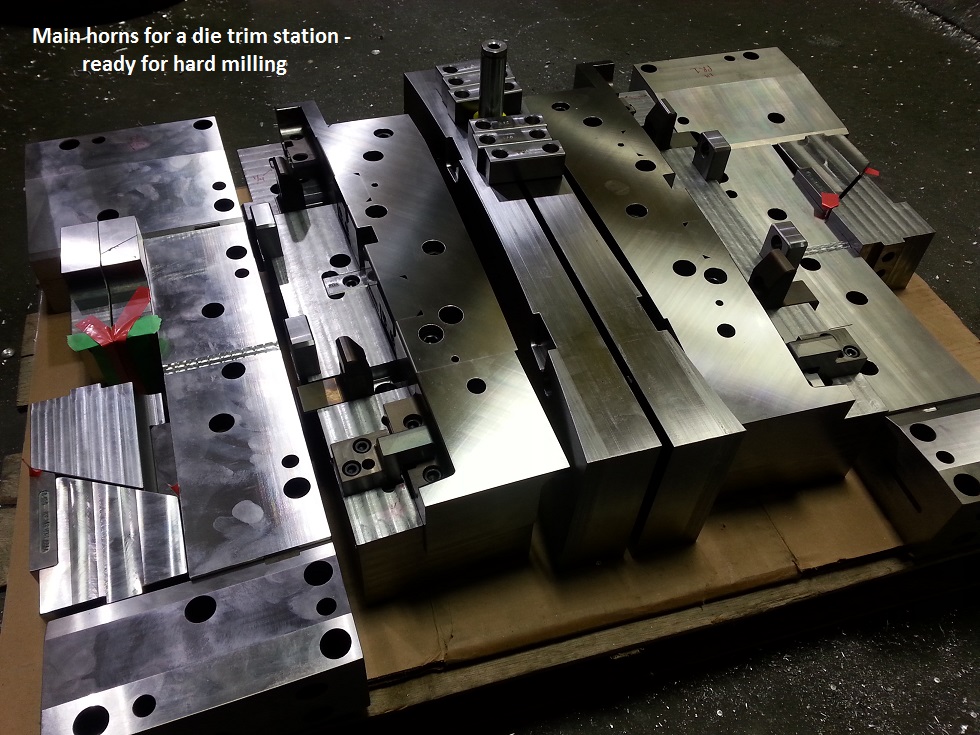

Assorted Die Blocks. Complete set of components for one station of a large automotive transfer die Automotive Die Station Components Fully assembled machine to trim automotive B-pillar ends Main horns for a die trim station - ready for hard milling

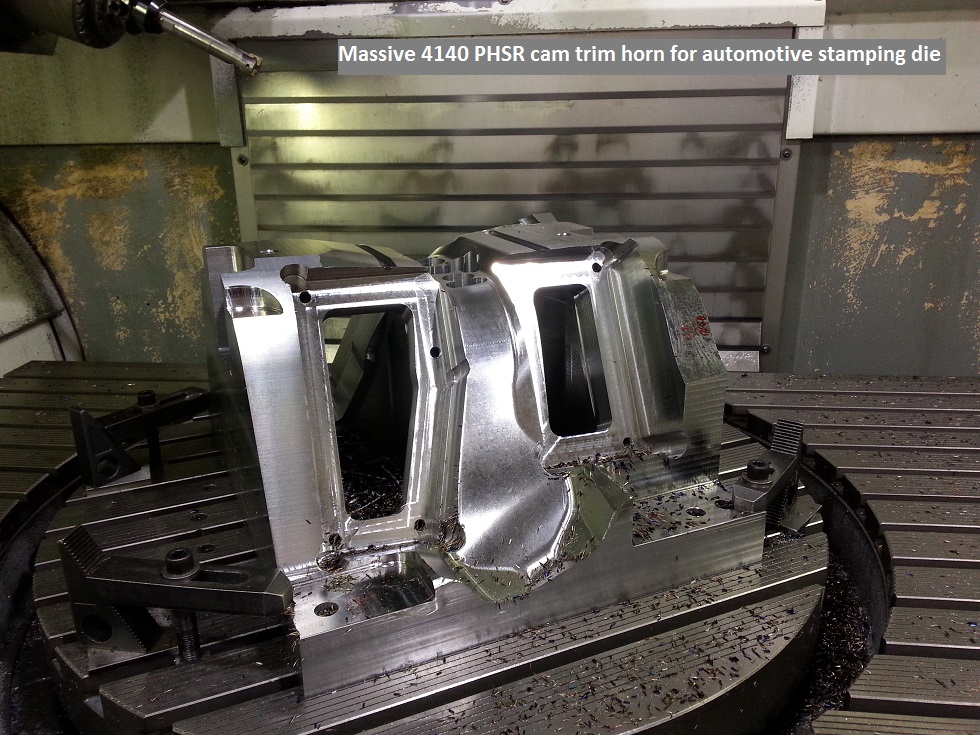

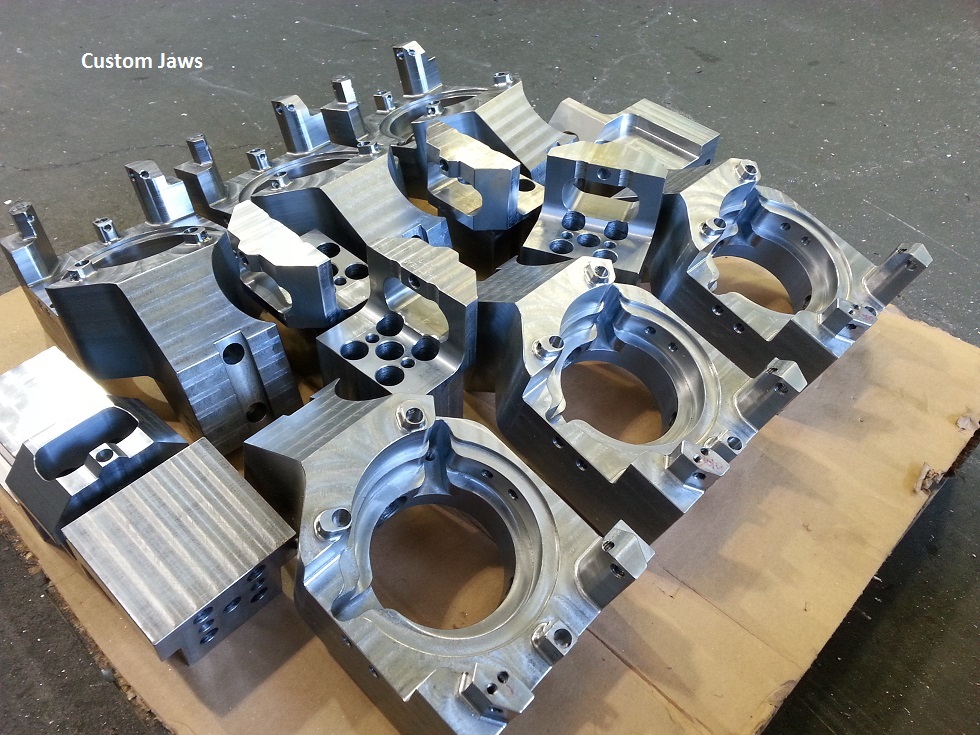

Massive 4140 PHSR Cam Trim Horn for Automotive Stamping Die. Custom Jaws
