5-AXIS MACHINING
We have been machining using positional and simultaneous 5-axis technology for over 13 years. With our 2006 Deckel-Maho DMU 100 Monoblock & 2017 DMU 85 Monoblock machines, we are equipped with spindle speeds capable of up to 20,000 RPM for smooth finishing, glass scales for high precision accuracy and up to 55" X-Travel, 28" Y-Travel. Examples of our work are pictured below. Simply click on the thumbnail for a larger image. To return to this page, use your web browsers back button.

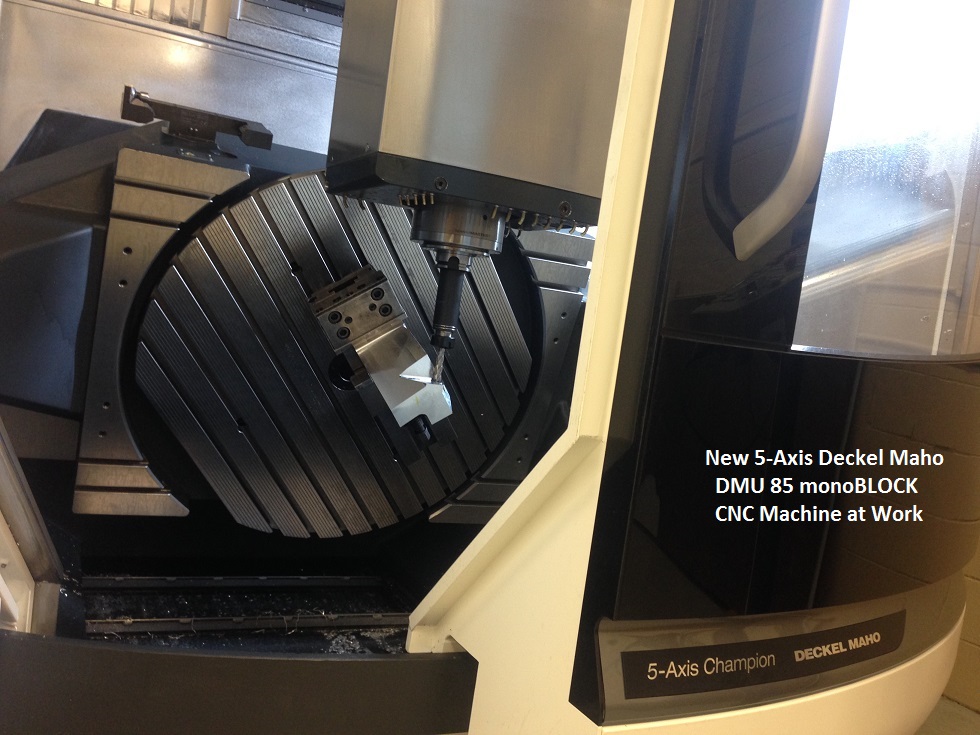

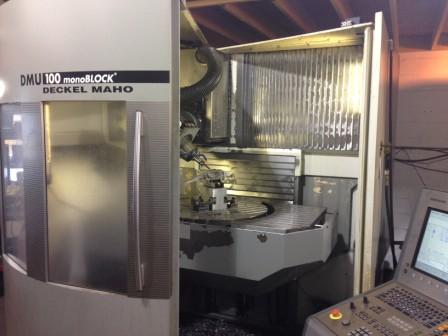

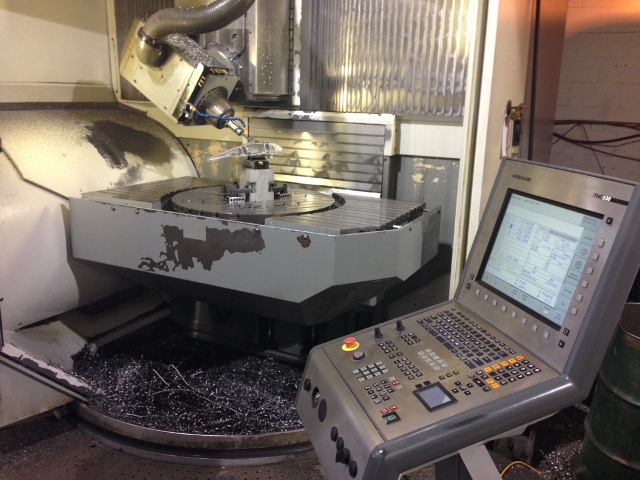

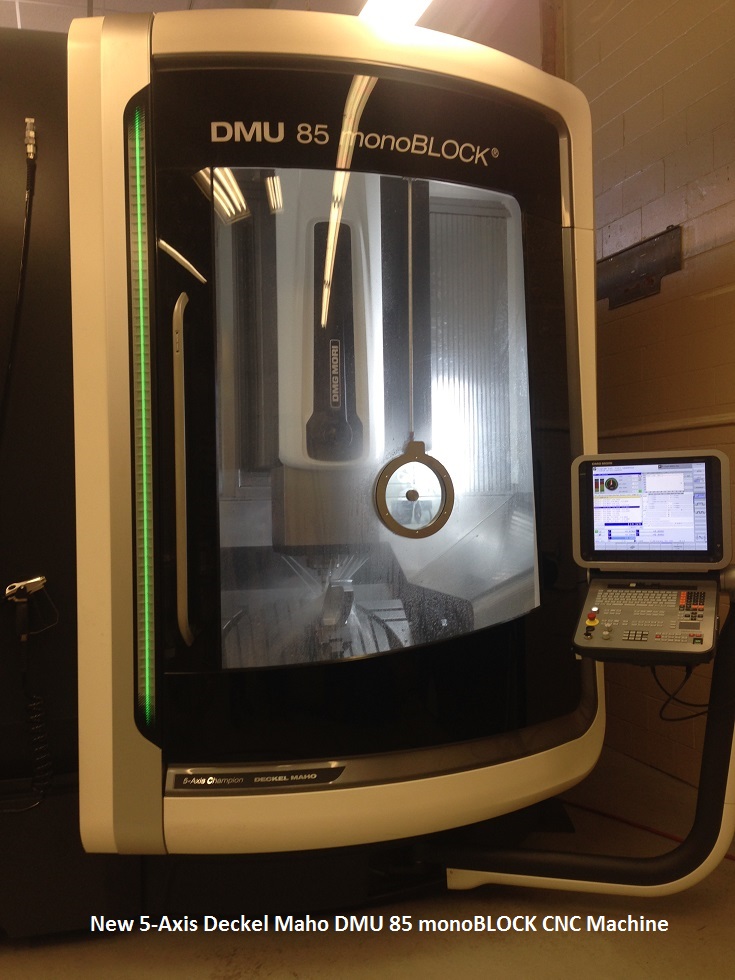

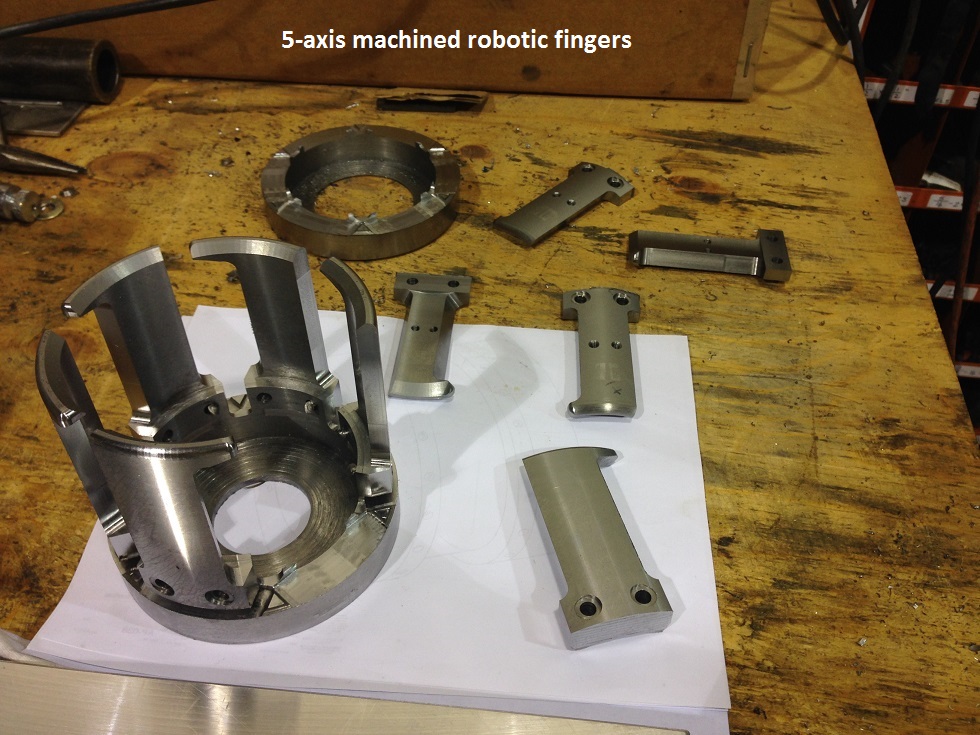

Deckel Maho 5-axis CNC machine: View 1 of 2. Deckel Maho 5-axis CNC machine: View 2 of 2. New 5-Axis Deckel Maho DMU 85 monoBLOCK CNC Machine. New 5-Axis Deckel Maho DMU 85 monoBLOCK CNC Machine at Work. 5-axis machined robotic fingers.

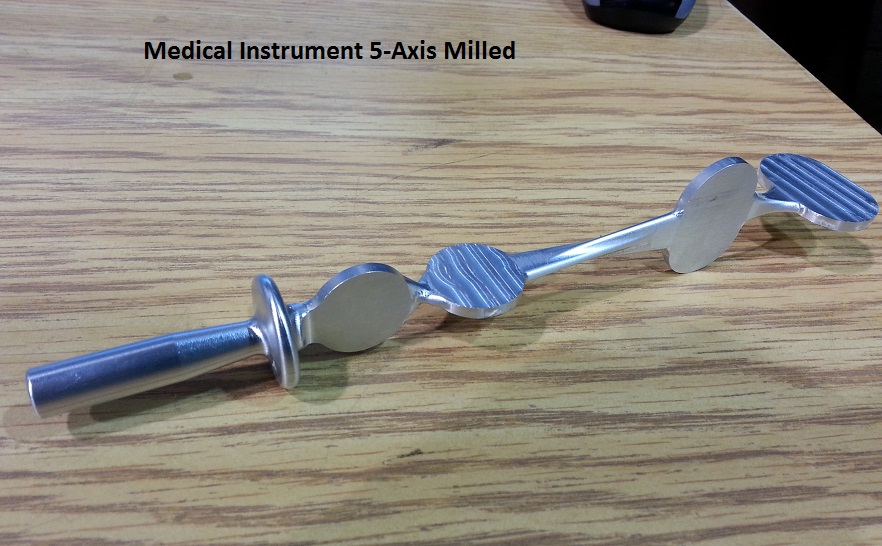

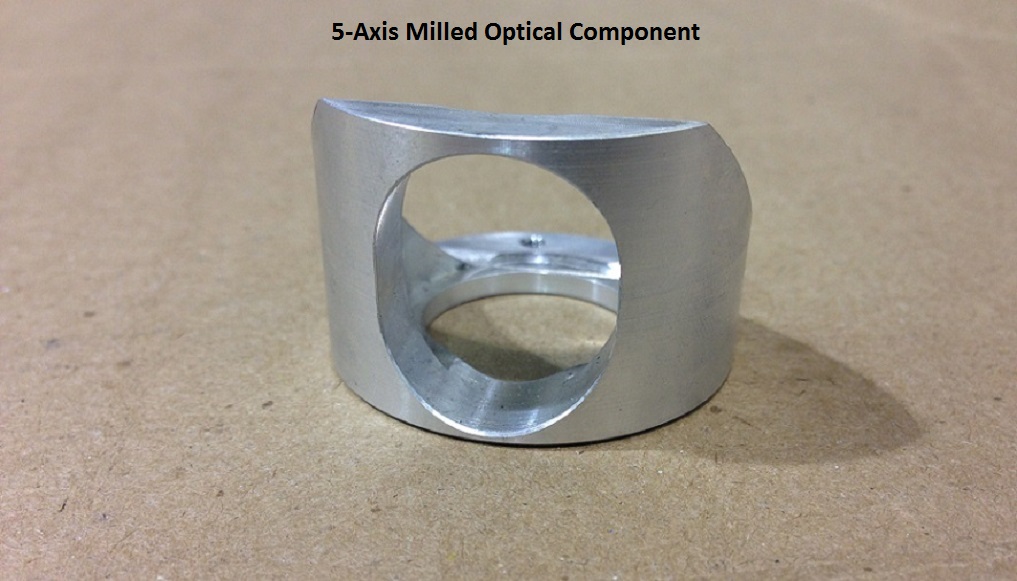

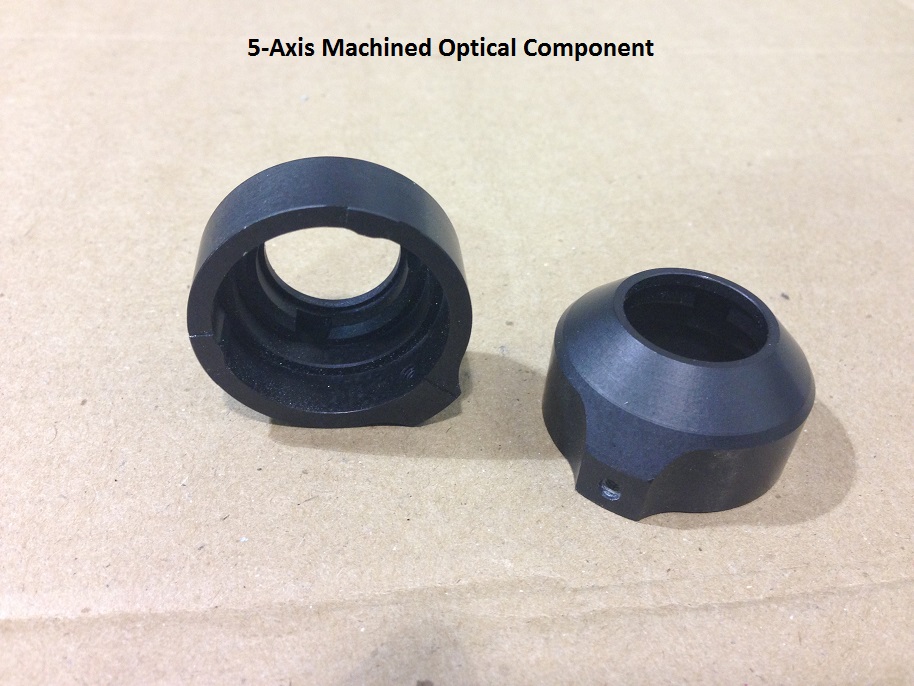

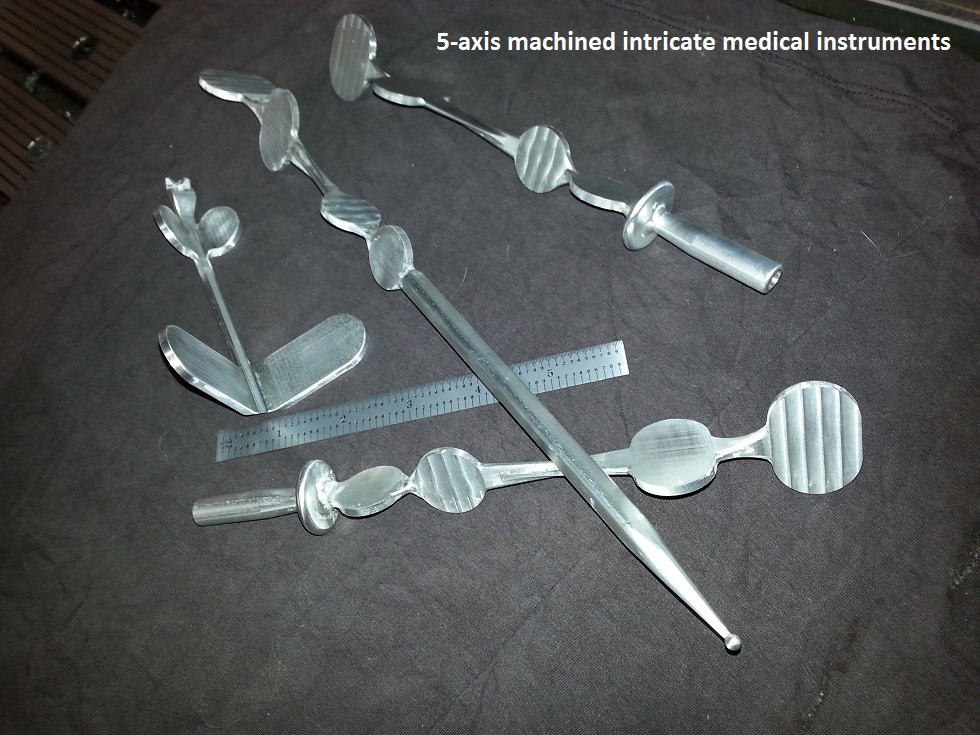

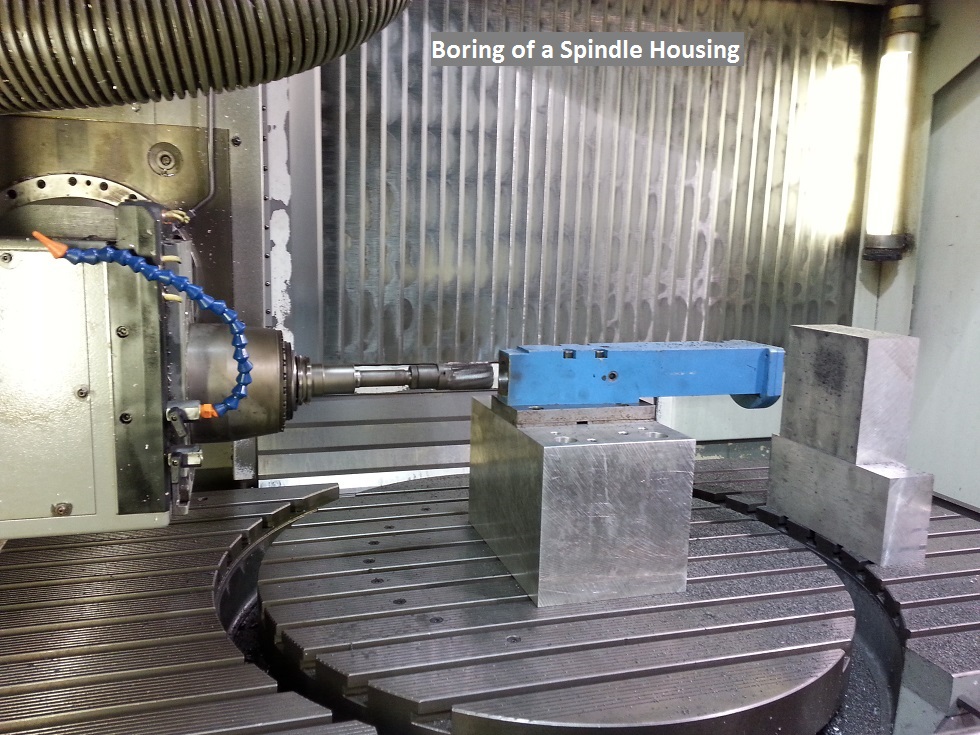

Boring of a Spindle Housing. Medical Instrument 5-Axis Milled. Intricate Medical Instruments 5-Axis Milled. 5-Axis Milled Optical Component. 5-Axis Machined Optical Component.

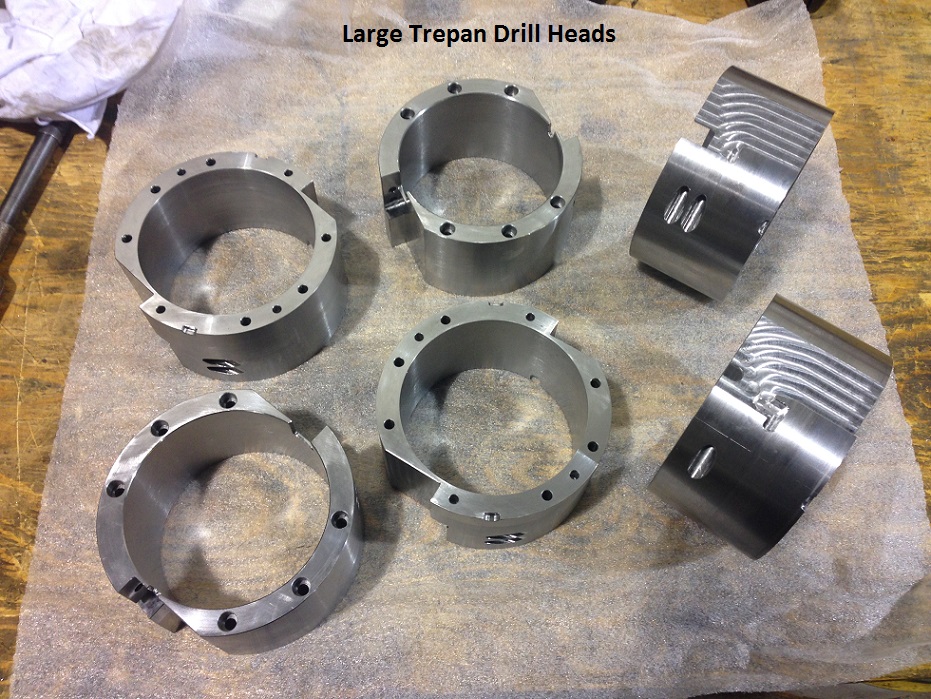

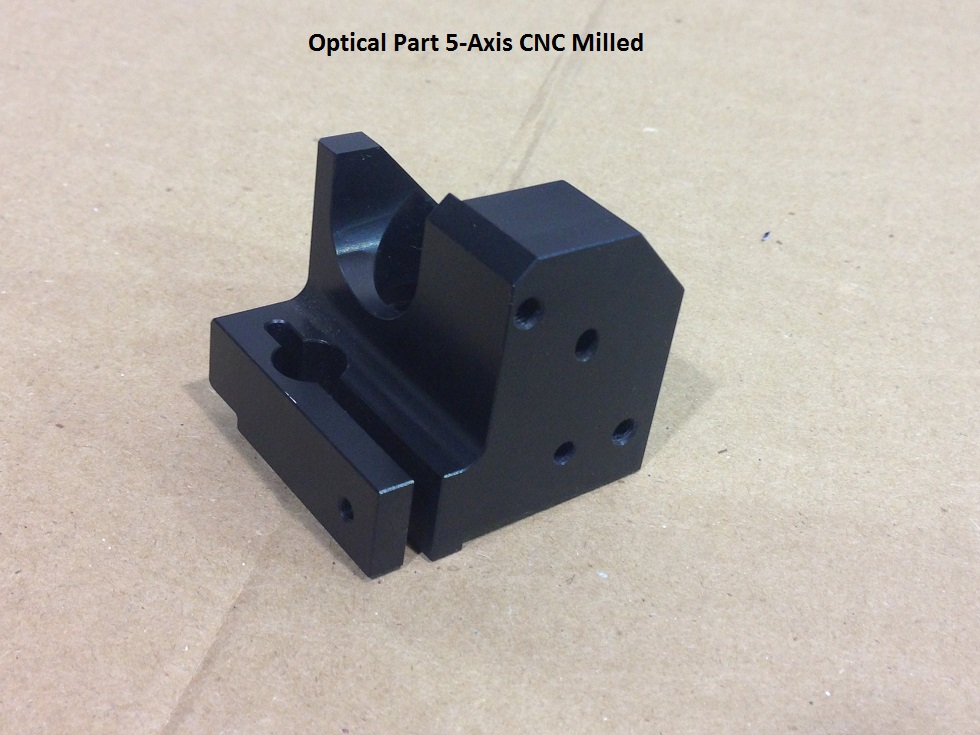

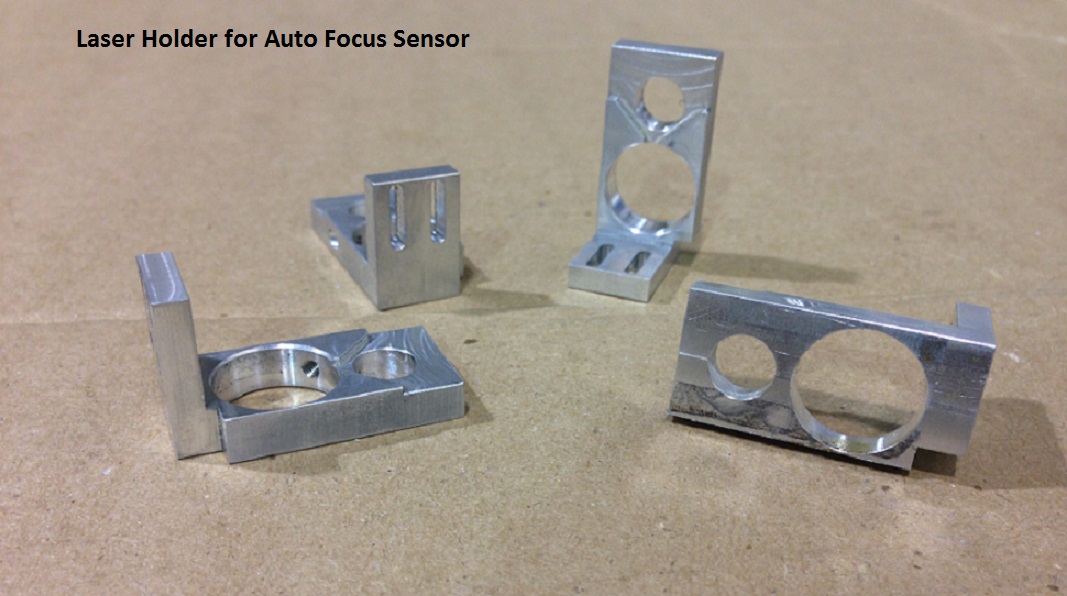

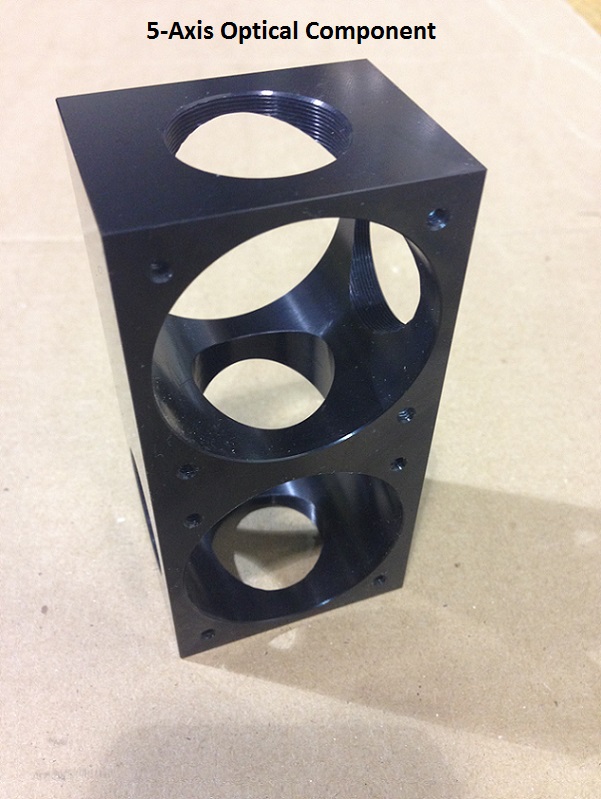

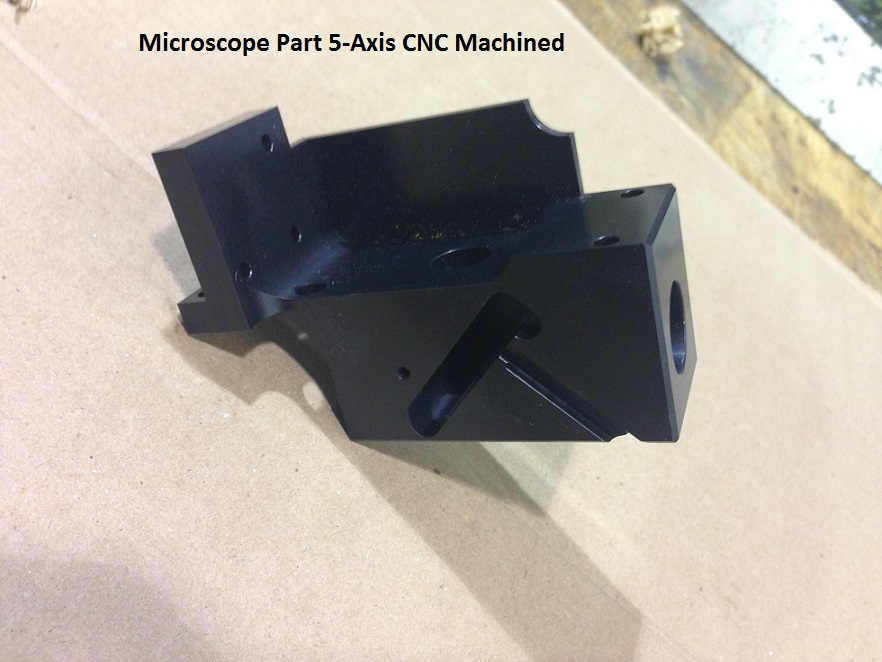

5-Axis Optical Component. Microscope Part 5-Axis CNC Machined. Laser Holder for Auto Focus Sensor. Large trepan drill heads. Optical Part 5-Axis CNC Milled.

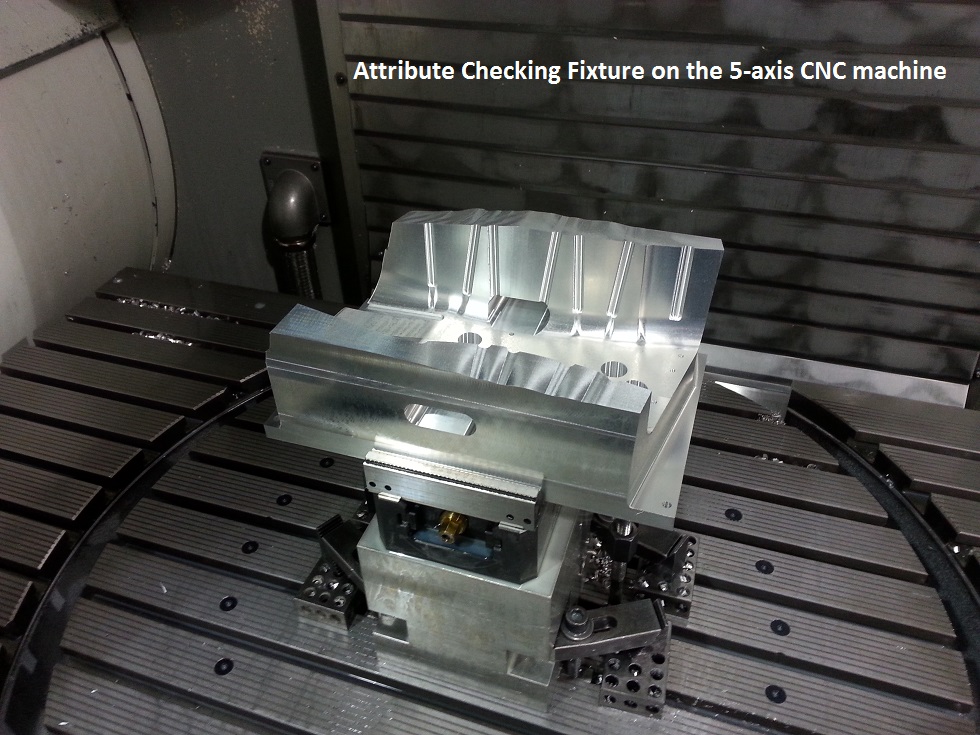

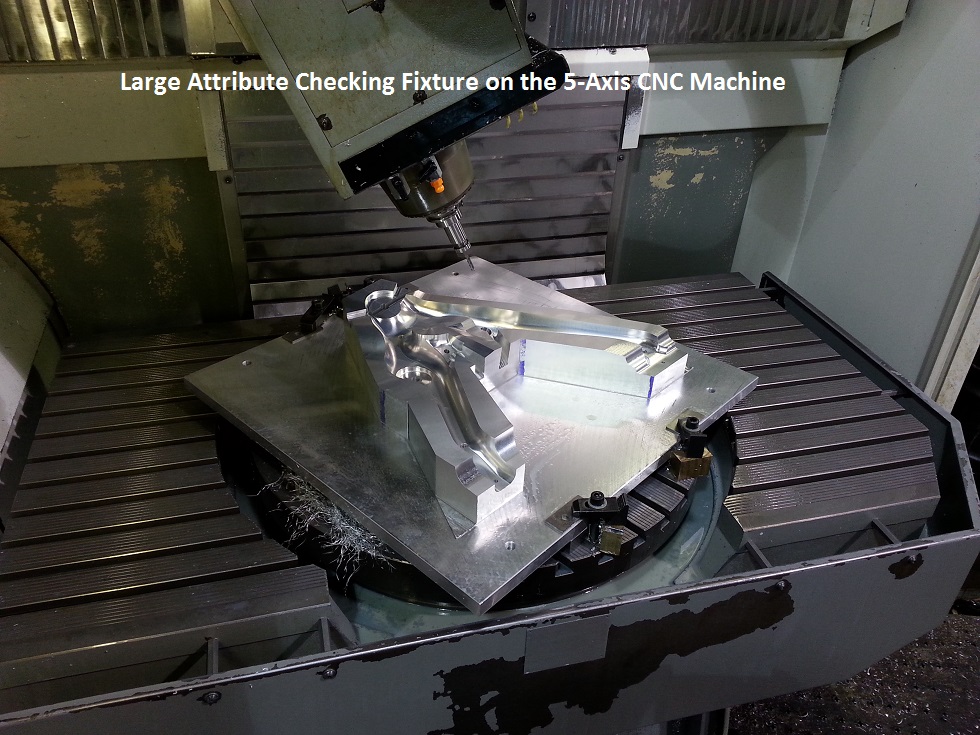

Aerospace part milled on 5-axis CNC machine. Aerospace component 5-axis machined. Finished aerospace component. Attribute Checking Fixture on the 5-axis CNC machine. Attribute Checking Fixture on the 5-Axis CNC Machine.

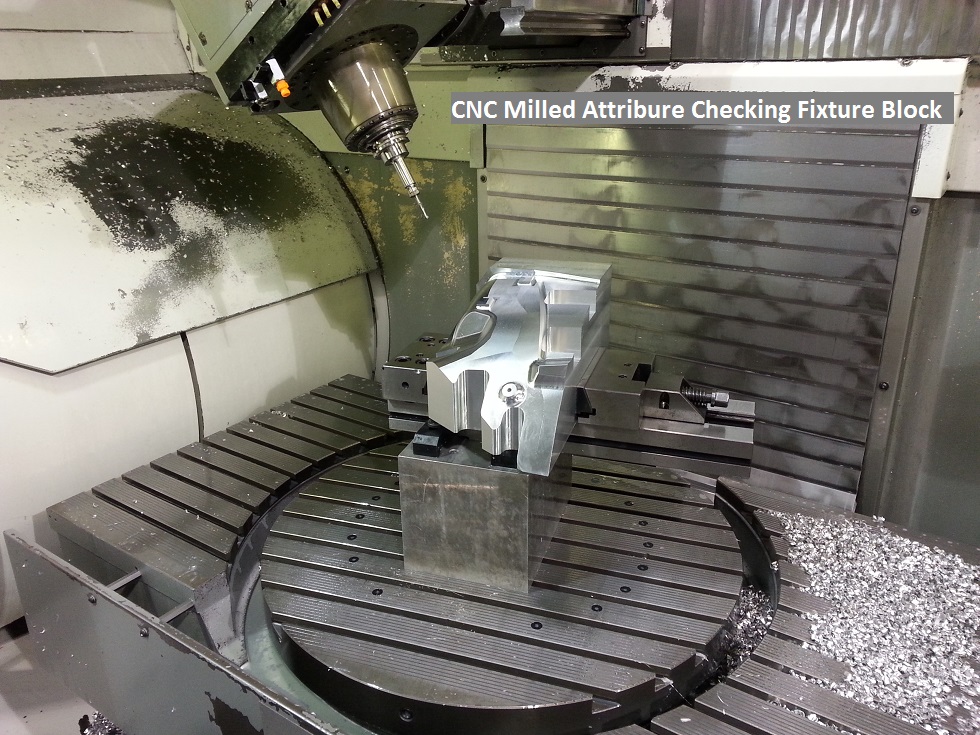

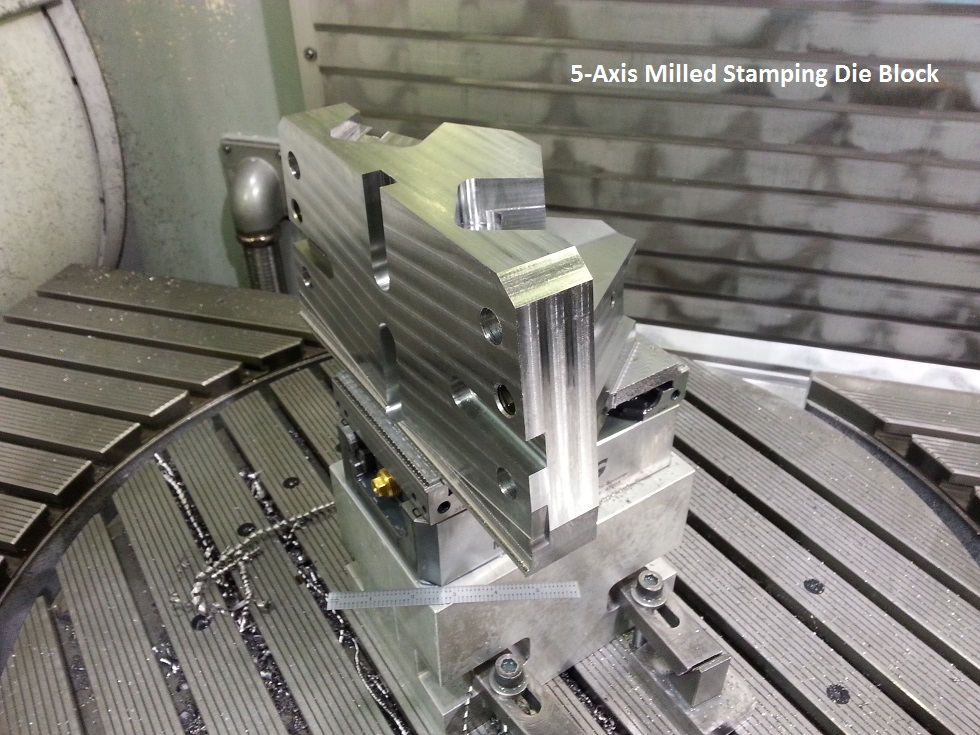

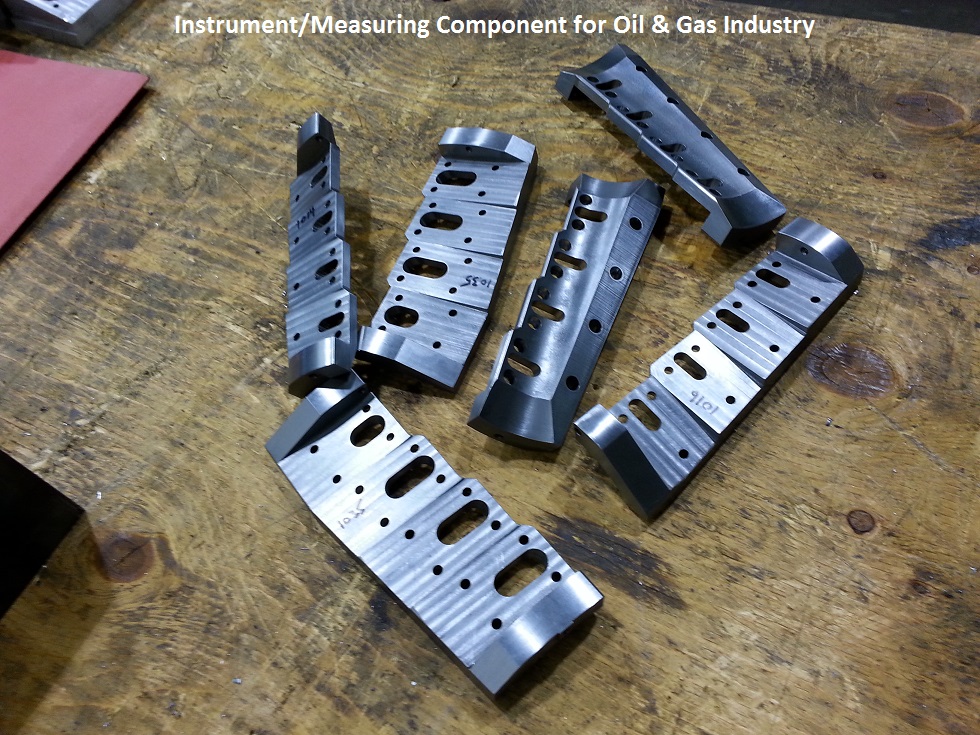

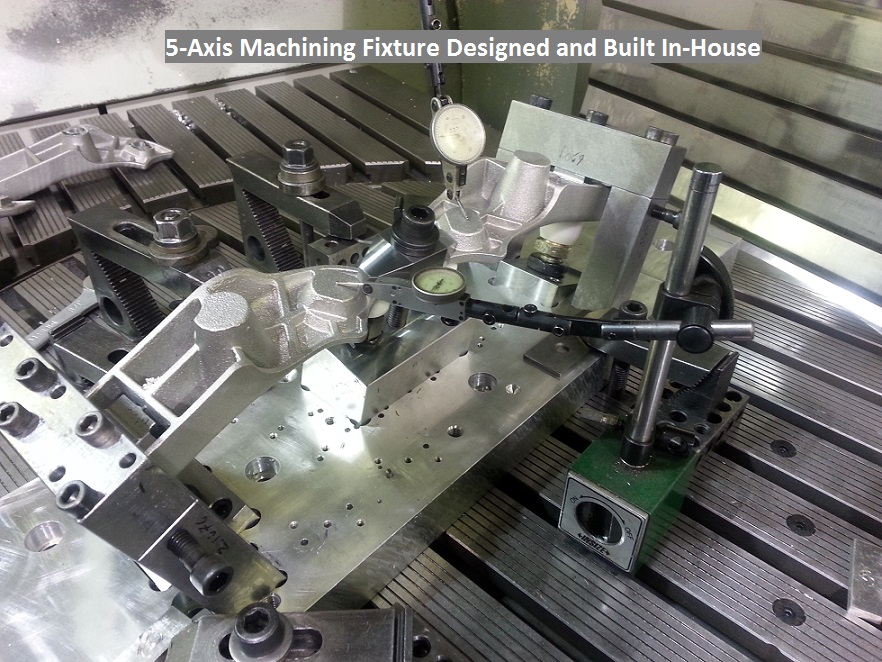

CNC Milled Attribure Checking Fixture Block. 5-Axis Machining Fixture Designed and Built In-House. Stamping Die Block. Steel Roller on DMU 100. Instrument/Measuring Component for Oil & Gas Industry.

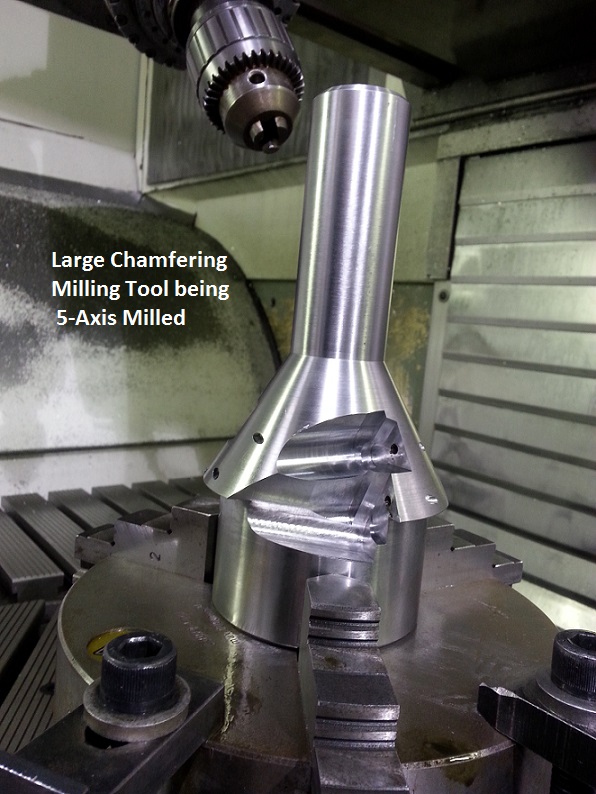

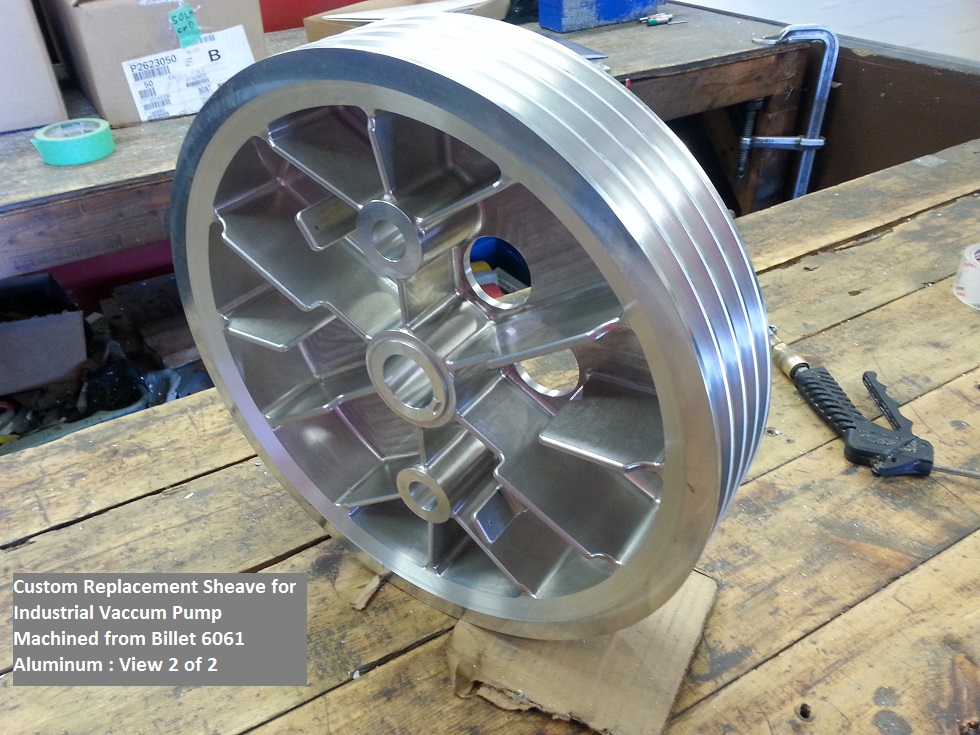

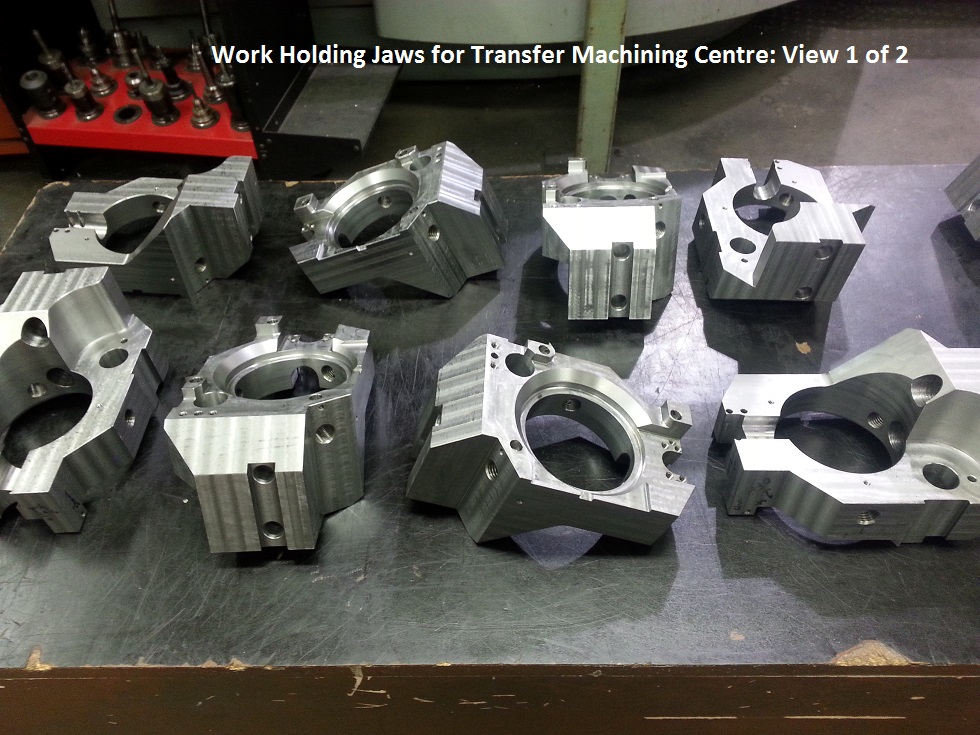

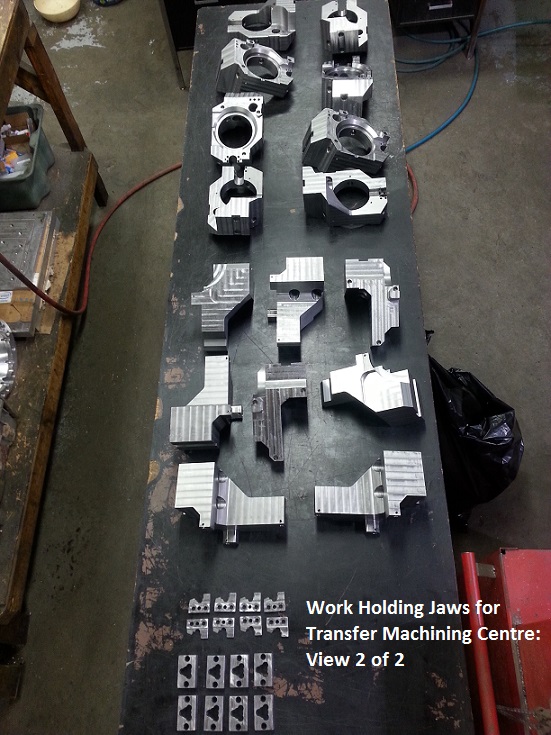

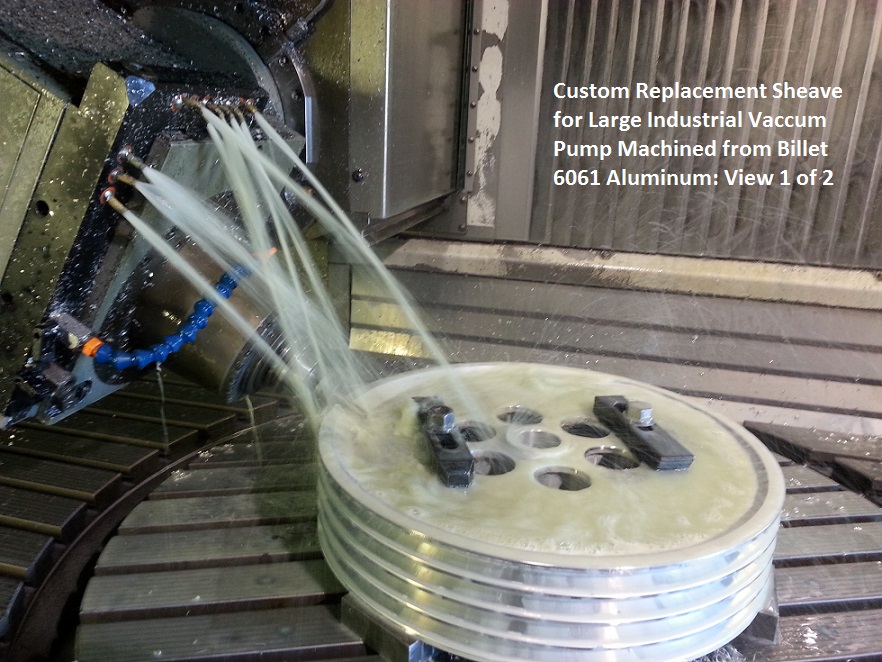

Work Holding Jaws for Transfer Machining Centre: View 1 of 2. Work Holding Jaws for Transfer Machining Centre: View 2 of 2. Large Chamfering Milling Tool being 5-Axis Milled. Custom Replacement Sheave for Large Industrial Vaccum Pump Machined from Billet 6061 Aluminum: View 1 of 2. Custom Replacement Sheave for Large Industrial Vaccum Pump Machined from Billet 6061 Aluminum: View 2 of 2.

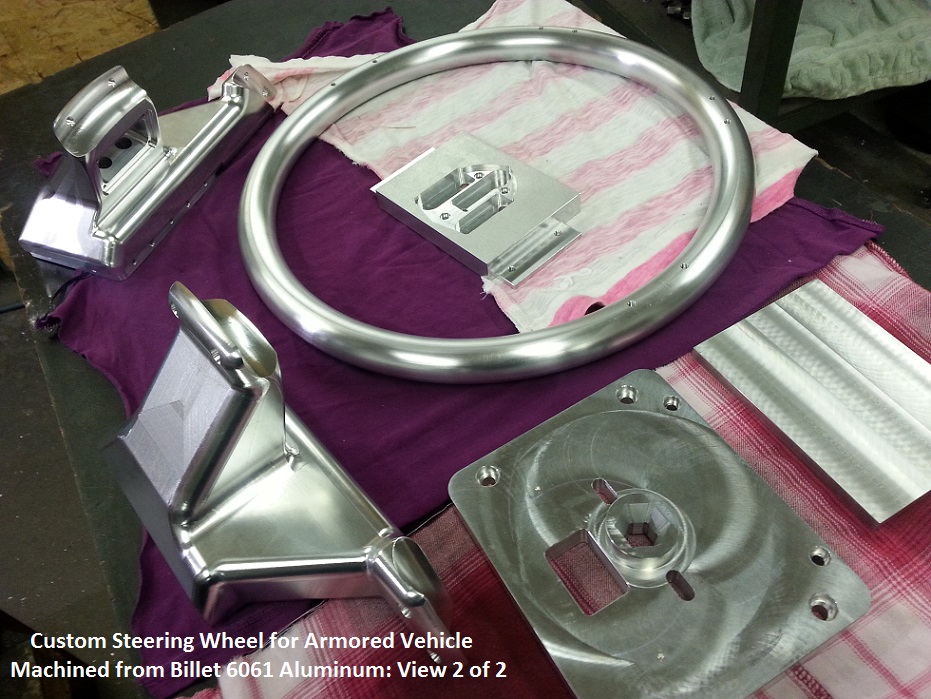

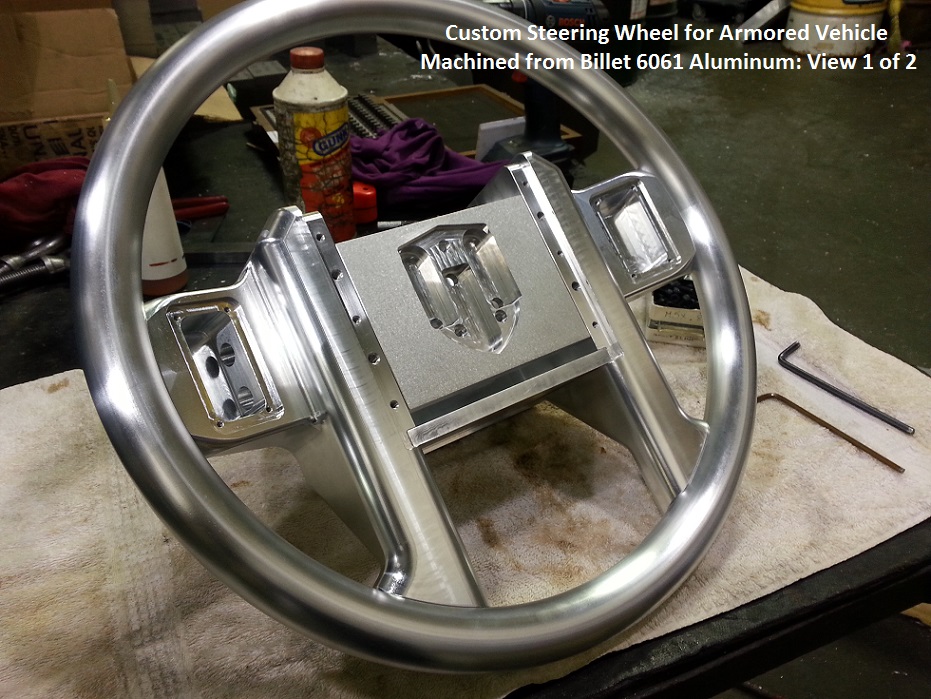

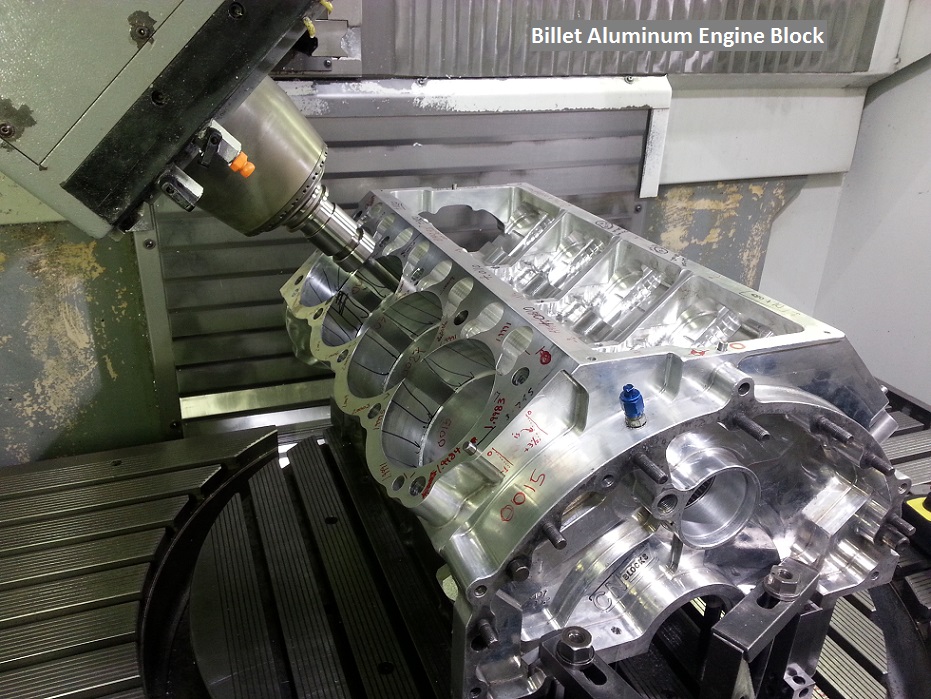

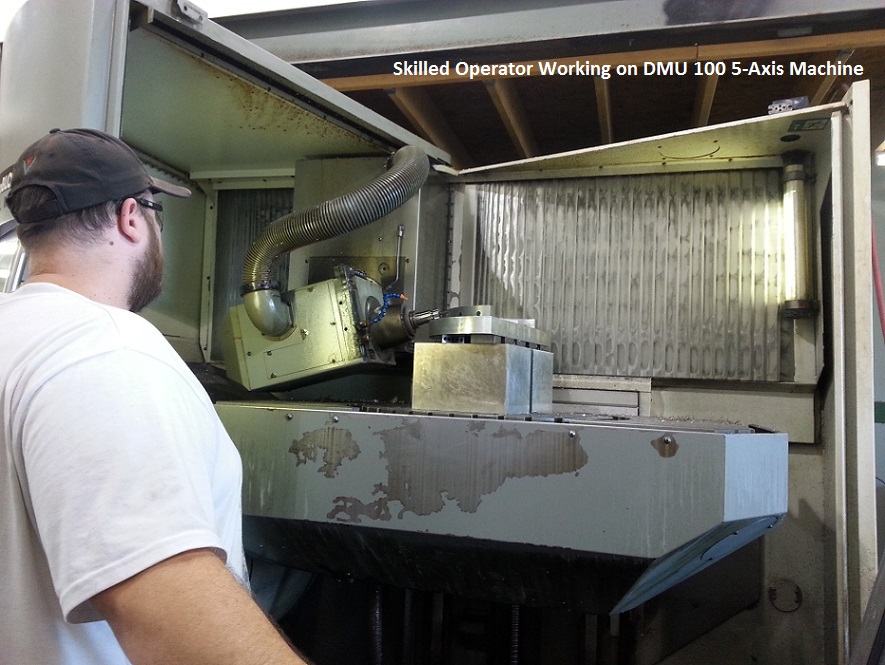

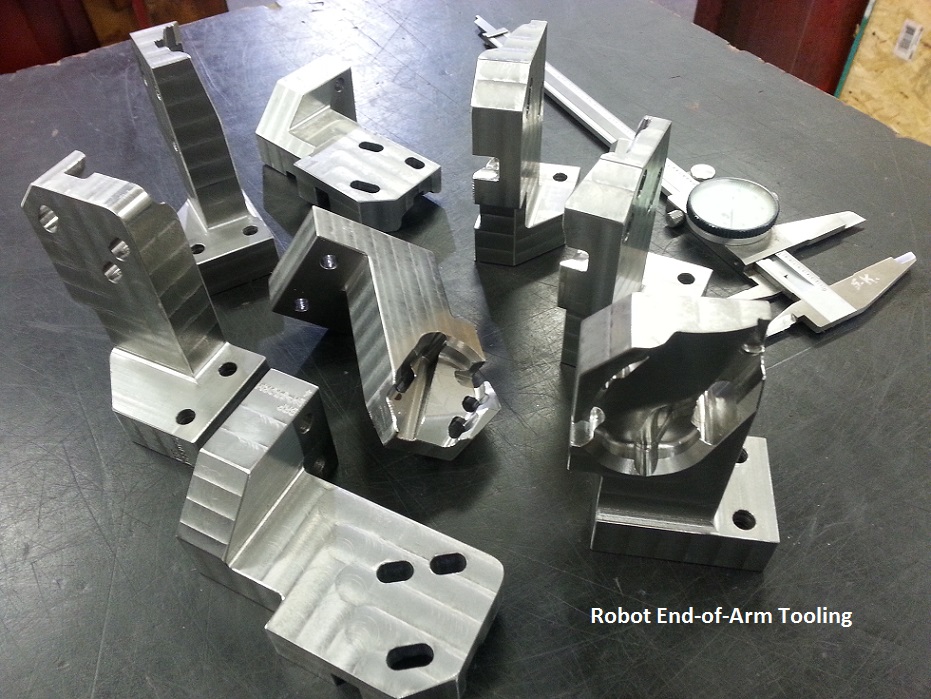

Skilled Operator Working on DMU 100 5-Axis Machine. Robot End-of-Arm Tooling. Custom Steering Wheel for Armored Vehicle Machined from Billet 6061 Aluminum: View 1 of 2. Custom Steering Wheel for Armored Vehicle Machined from Billet 6061 Aluminum: View 2 of 2. Billet Aluminum Engine Block.

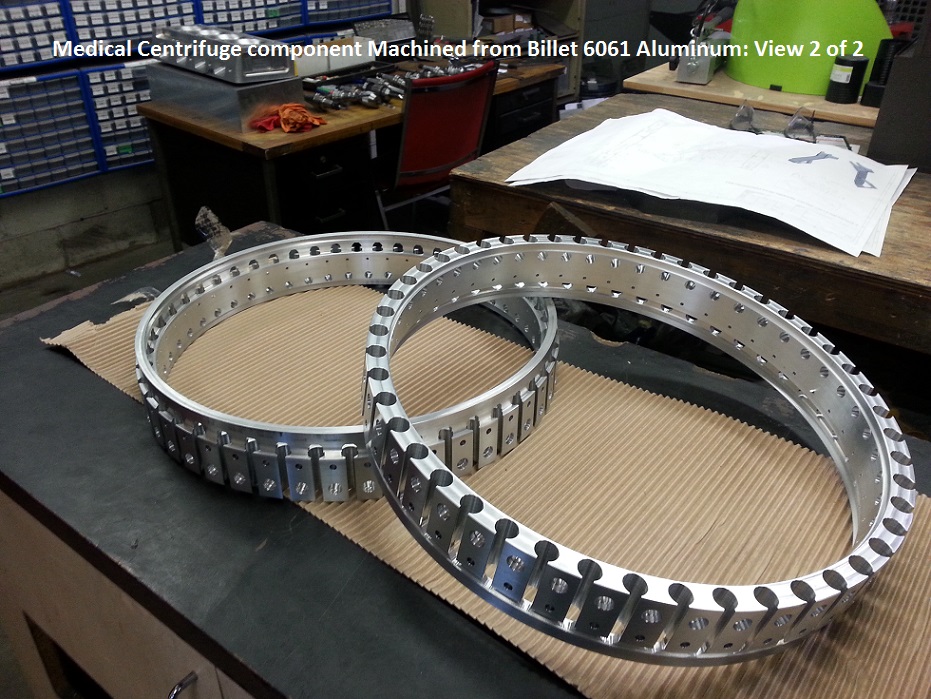

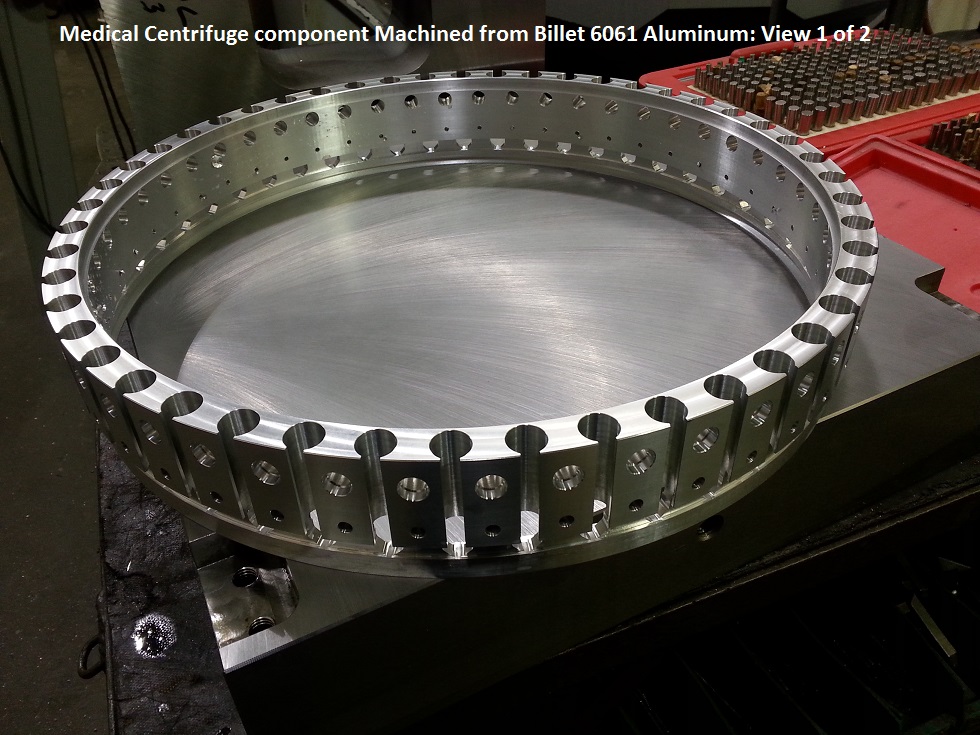

Medical Centrifuge component Machined from Billet 6061 Aluminum: View 1 of 2. Medical Centrifuge component Machined from Billet 6061 Aluminum: View 2 of 2.
